WECON PLCs are industrial control systems designed for automation in sectors like packaging, food, and textiles. Their hardware architecture typically consists of a main unit (PLC host) that can be enhanced through BD boards and extension modules.
1. WECON PLC Host (Main Unit)
The main unit contains the CPU, built-in memory, and basic digital inputs/outputs (I/O).
Performance: Features like 0.01μs to 0.06μs execution speeds and high-speed pulse outputs for motion control.

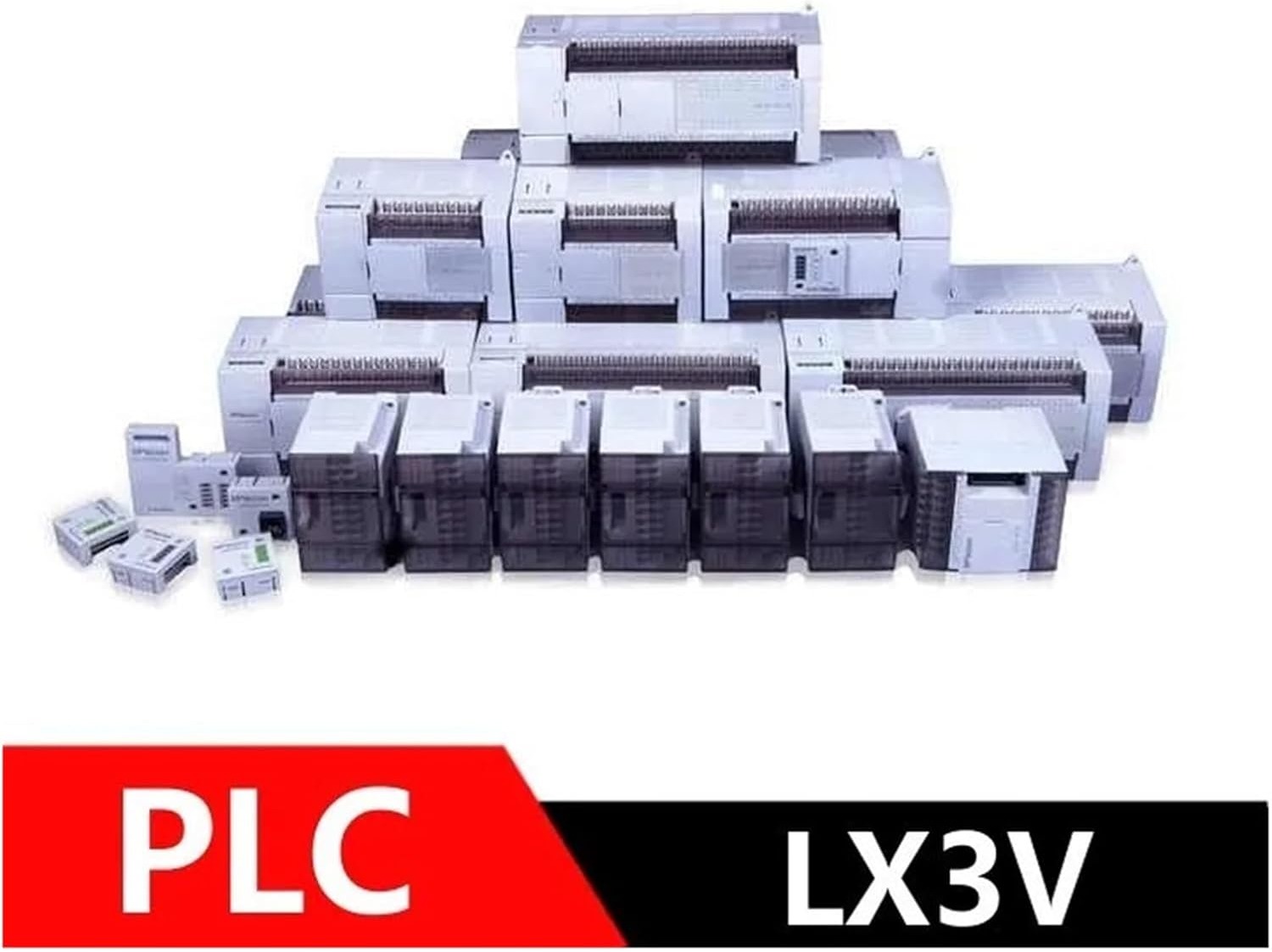

Series: Common series include the LX3V (economical/high-speed), LX5V (high-performance motion control), and LX1V/LX2V (compact/basic).
Connectivity: Standard ports often include RS422, RS485, and USB for programming via LECPSoft or WECON PLC Editor.
2. BD Boards (Board Modules)
BD boards are compact expansion boards that plug directly into the top of the PLC host. They are ideal for adding specific functionality without increasing the physical footprint (width) of the PLC on a DIN rail.
Function: They provide a low-cost way to add small amounts of I/O or communication ports.
Common Types:
Analog BD Boards: (e.g., LX3V-2AD2DA-BD) Add 2 analog inputs and 2 analog outputs.
Communication BD Boards: (e.g., LX5V-2RS485-BD) Add extra RS485 ports for Modbus RTU/ASCII communication.
Temperature BD Boards: Support specific sensors like PT100.
3. Extension Modules
Extension modules are separate units that connect to the side of the PLC main unit via a cable or bus connector. They are used when significantly more I/O or specialized high-resolution functions are required.
Scalability: Most WECON PLCs (like the LX3V or LX5V) support up to 16 extension modules.
Common Types:
Digital I/O Modules: Add blocks of digital inputs/outputs (e.g., LX3V-16EYR for 16 relay outputs).
Analog Modules: (e.g., LX3V-4AD) Provide high-resolution (12-bit or 16-bit) analog input/output for voltage (0-10V) or current (4-20mA).
Specialty Modules: Include high-speed pulse, temperature (TC/PT), and weighing (WT) modules.
