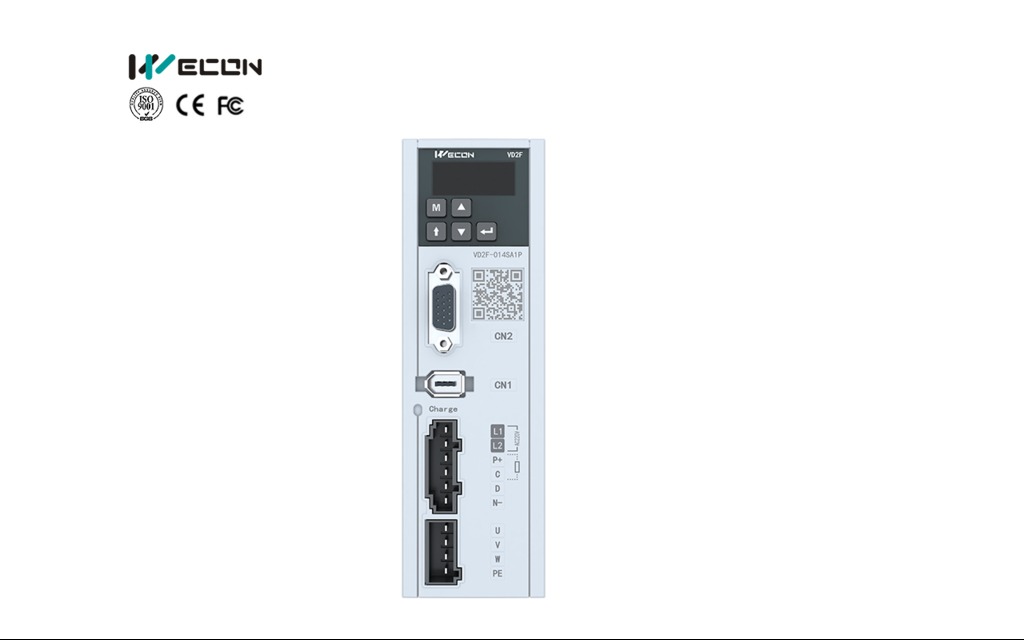

The WECON VD2F series consists of compact, pulse-type servo drives designed for general-purpose industrial positioning applications. They are part of the VD2 SA series of servo drives, known for being affordable, versatile, and offering high-performance features for motion control in machinery like robotics and conveyors.
Key Features and Description:
Performance: Utilizes IGBT PWM sine-wave current control for precise motor operation.
Input Voltage: Designed for single-phase 200~240V AC, 50/60Hz.
Encoder Compatibility: Compatible with 17-bit or 23-bit absolute encoders. Control Methods: Supports 8-segment internal speed command and 16-segment internal position command.
Braking: Includes a built-in 750W braking resistor, with the option to switch to an external resistor.
Communication & Tuning: Supports Modbus RTU/RS-485/RS-422, automatic load inertia identification, and rigidity self-tuning.
Protection: Offers extensive protection against over-voltage, under-voltage, over-current, over-speed, over-load, over-heating, and encoder failure.
I/O: Typically features 4 digital inputs and 4 outputs, with pulse input frequencies up to 500 kHz.
Common Models & Specs:
VD2F-003SA1P: 3A output current.
VD2F-010SA1P: 10A output current.
VD2F-014SA1P: 14A output current.
The VD2F drives are specifically designed for space-saving installations due to their compact design, making them suitable for crowded industrial cabinets.
