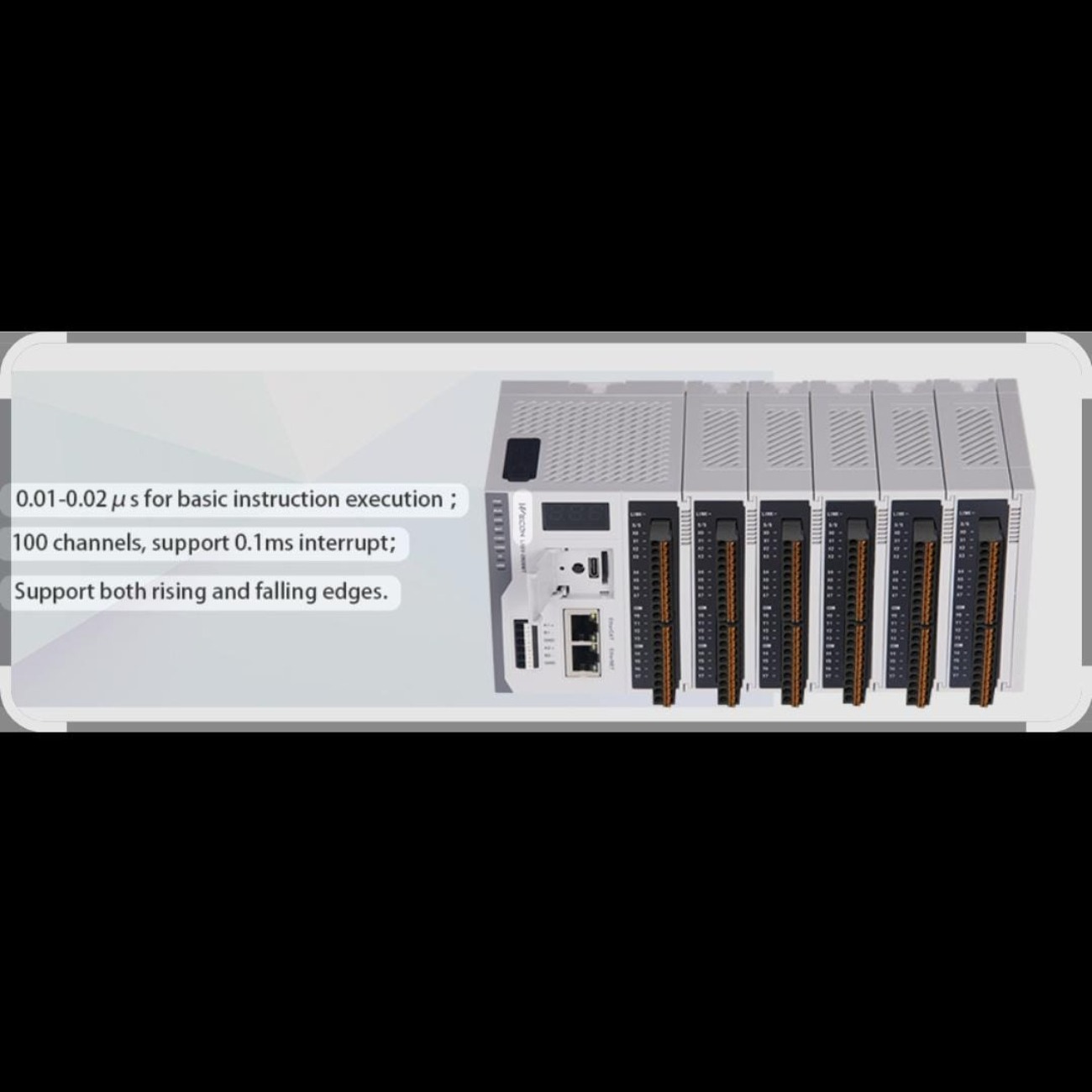

The Wecon LX6V Series is a high-speed, modular EtherCAT programmable logic controller (PLC) designed for advanced motion control and industrial automation.
Key Specifications & Features
• Model Example: LX6V-0808MT (8 digital inputs, 8 transistor outputs)
• Processor & Memory: 5 MB program capacity (EMMC) with a basic instruction execution time of 0.01 to 0.02 µs.
• High-Speed I/O: 8-channel 150 kHz single-phase inputs, 4-channel 150 kHz AB-phase high-speed inputs, and 4-channel 200 kHz pulse outputs.
• Communication Ports: Dual Ethernet/EtherCAT ports (1000M Ethernet), 2 RS485 serial ports, USB Type-C, and TF card support.
• Motion Control: Supports up to 128 EtherCAT servo axes.
• Modular Expansion: Supports 32 local extension modules (expandable up to 64 modules with an additional power module), including analog, thermocouple (4TC), RTD (4PT), and digital I/O modules.
Key Specifications & Features
• Model Example: LX6V-0808MT (8 digital inputs, 8 transistor outputs)
• Processor & Memory: 5 MB program capacity (EMMC) with a basic instruction execution time of 0.01 to 0.02 µs.
• High-Speed I/O: 8-channel 150 kHz single-phase inputs, 4-channel 150 kHz AB-phase high-speed inputs, and 4-channel 200 kHz pulse outputs.
• Communication Ports: Dual Ethernet/EtherCAT ports (1000M Ethernet), 2 RS485 serial ports, USB Type-C, and TF card support.
• Motion Control: Supports up to 128 EtherCAT servo axes.
• Modular Expansion: Supports 32 local extension modules (expandable up to 64 modules with an additional power module), including analog, thermocouple (4TC), RTD (4PT), and digital I/O modules.
