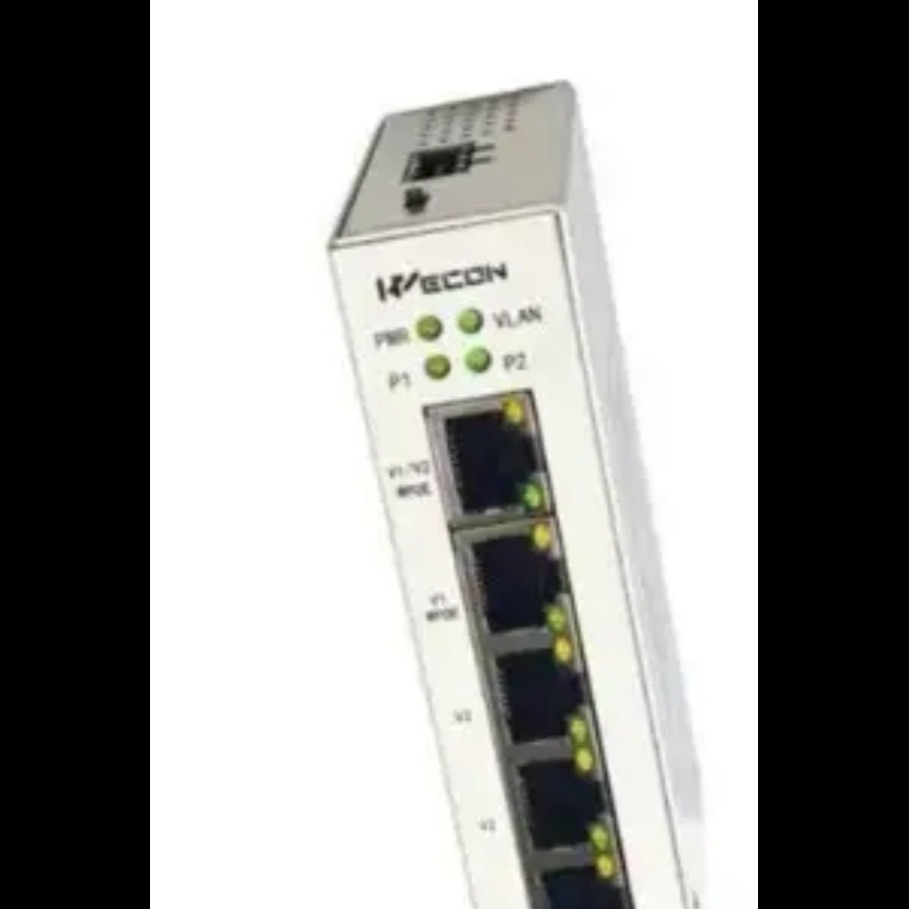

Key Specifications & Features
• Ports: 5 × 10/100 Mbps Ethernet ports.
• PoE Support: Features WPoE (WECON Power over Ethernet) support on Ports 1 and 2 for compatible WECON devices; Ports 3 to 5 handle standard Ethernet data.
• LAN / VLAN Isolation: Built-in VLAN DIP switch divides the ports into two separate local networks to isolate traffic and improve security.
• Power Supply: 24 VDC industrial power input.
• Dimensions & Casing: Compact iron-metal housing measuring 113.1 × 71.0 × 29.0 mm (approx. 350 grams).
• Mounting: Supports both 35 mm DIN rail and wall mounting
