Name: LX3V-0806MT-A2 / LX3V-0806MR-A2
Brand: WECON
Price: 4500 INR
Availability: InStock

Phone Number

08048036809

Please keep 0 before dialling the number.

Email Address info@adhiraautomation.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 42, Maruthamalai Gounder Layout, Ramakrishnapuram, Ganapathy, Coimbatore - 641006. Tamilnadu, South India

Coimbatore, India, 641006

Description

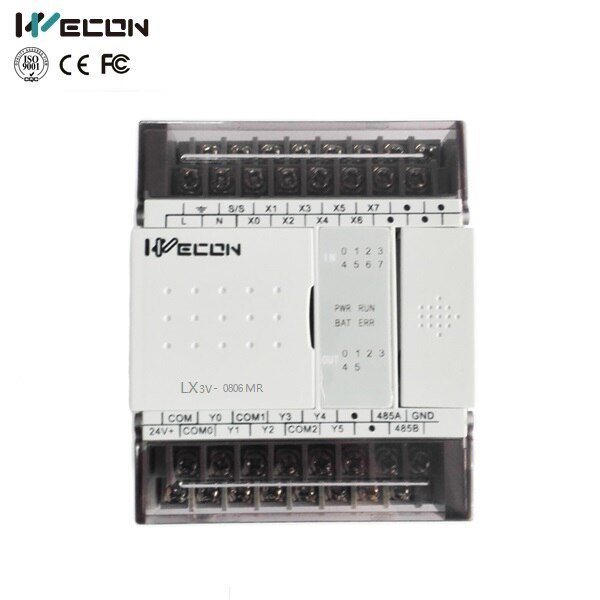

The Wecon LX3V-0806MT-A2 and LX3V-0806MR-A2 are compact, high-speed PLCs designed for industrial automation, featuring 8 input points and 6 output points. The MT model uses transistor outputs for fast, precise control (suitable for servos), while the MR model uses relay outputs for higher current capacity. Both support RS232/RS485 communication, high-speed counting, and are compatible with Mitsubishi programming software. Key Features and Specifications: Model Variants:LX3V-0806MT-A2: Transistor Output (typically used for pulse/motion control).LX3V-0806MR-A2: Relay Output (suitable for controlling solenoids/relays).I/O Configuration: 8 Inputs (DC 24V) / 6 Outputs.Power Supply: AC 85-265V 50-60Hz.Performance: High-speed I/O (2-channel 200KHz input, 2-channel 100KHz output on MT).Communication: 2 serial ports: COM1 (RS422/RS485) and COM2 (RS485).Memory: 16K steps, with FLASH storage.Programming: Supports ladder logic and instruction list (similar to Mitsubishi FX3U).Physical: Compact design (approx. (105times 90times 74) mm), typically DIN rail mountable. These units are designed for small-scale automation, providing reliable, cost-effective, and fast-acting control.
