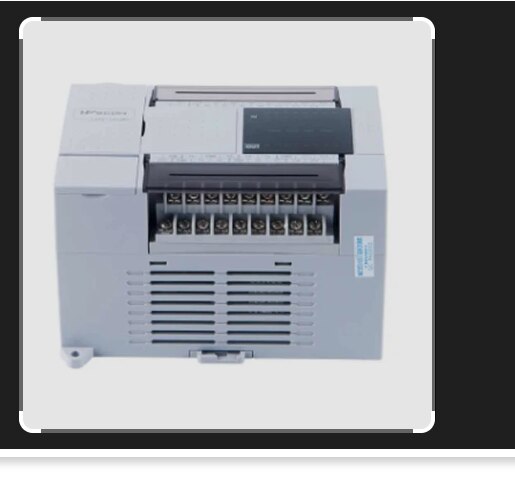

LX3V-1208MT-A2 / LX3V-1208MR-A2
Description
The WECON LX3V-1208MT-A2 (Transistor) and LX3V-1208MR-A2 (Relay) are compact 20-I/O point PLC controllers (12 Input / 8 Output) designed for industrial automation. They feature AC 85-265V power supply, 2-channel 200KHz pulse inputs, and 2-channel 100KHz pulse outputs, supporting high-speed positioning.
Key Technical Specifications & Features
I/O Configuration: 12 Inputs (DC 24V) and 8 Outputs.
Output Types:
LX3V-1208MR-A2: Relay output, suitable for high-voltage or AC loads.
LX3V-1208MT-A2: Transistor output, suitable for high-speed pulse signaling.
Power Supply: AC 85-265V, 50-60Hz.
Communication: RS422 and RS485 ports, plus 1 BD board support.
Performance: High-speed, high-precision processing.
Environmental: Designed for industrial environments, 0 to 55°C operating range.
Mounting: DIN Rail.
These PLCs are widely used for machine control, providing a robust solution for automation applications. The “A2” likely denotes a specific hardware/firmware version within the LX3V series.
