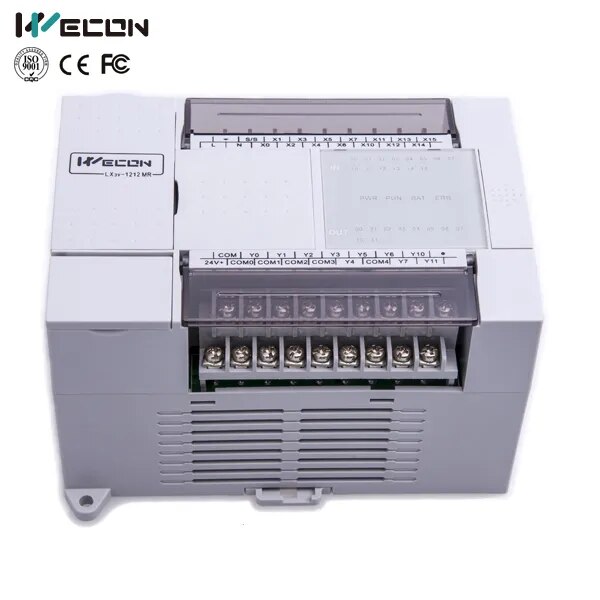

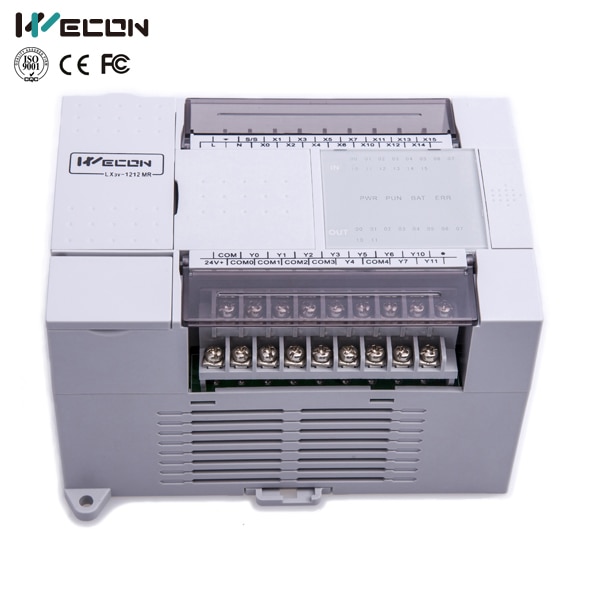

LX3V-1212MR-A / LX3V-1212MT-A

The WECON LX3V-1212MR-A and LX3V-1212MT-A are compact, high-performance PLCs featuring 12 digital inputs and 12 digital outputs, powered by AC 85-265V. The MR-A uses relay outputs for high-load capacity, while the MT-A uses transistor outputs for high-speed, 100KHz-400KHz pulse output capabilities. Both support RS422/RS485 communication, BD boards, and are ideal for industrial automation. Key Features and Specifications: I/O Configuration: 12 Digital Inputs (DI) / 12 Digital Outputs (DO).Output Types:LX3V-1212MR-A: Relay output (suitable for AC/DC loads).LX3V-1212MT-A: Transistor output (NPN, suitable for motion control/fast switching).Power Supply: AC 85-265V (50/60Hz).Communication: RS422 and RS485, supporting Modbus, FX2N no-protocol, and WECON protocols.High-Speed Input/Output: Up to 2-4 channels of 100K-400KHz pulse outputs (MT model) and multiple high-speed counter inputs.Expansion: Supports BD boards (serial ports) and up to 16 extension modules.Programming: Supports LX3V series PLC editing software and FX2N programming.Operating Temperature: (0text{ to }55^{circ }text{C}). These units are designed to work in industrial environments, offering high reliability and stability for automation tasks.
