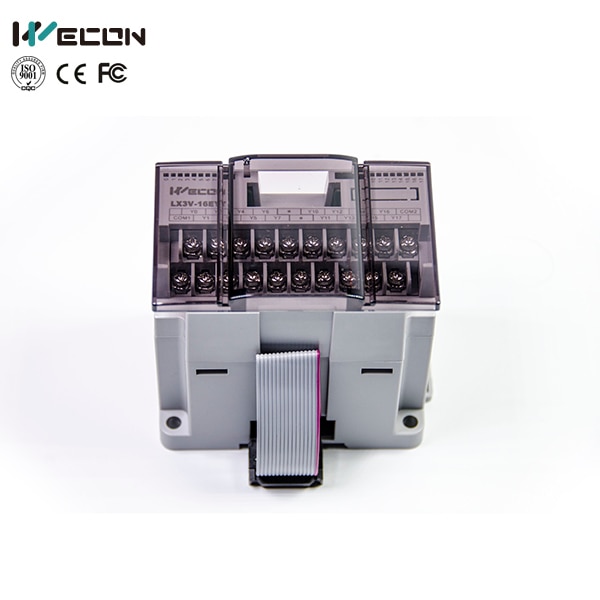

LX3V-16EYT / LX3V-16EYR

The Wecon LX3V-16EYT is a 16-point transistor output expansion module for the LX3V series PLC designed for high-speed switching in industrial automation. It features photocoupling isolation, a 5V–30V DC power range, and is suited for DIN rail or panel mounting, providing reliable, fast-response control for, e.g., solenoids and contactors.

Key Features and Specifications:

Output Type: 16 Transistor (T) outputs.

Expansion Function: Designed to expand output capacity for Wecon LX3V series PLCs.

Power Supply: DC 5V – 30V.

Response Time: Fast response, less than 0.2ms.

Isolation: Photo-coupling.

Load capacity: 0.5A per point, 1.6A for eight points.

Installation: Compact design for DIN rail or panel mounting.

Applications:

Ideal for industrial automation, high-speed, and frequency switching applications.

Used for controlling devices like relays, lamps, and motors.
