LX3V-1WTv2
Description

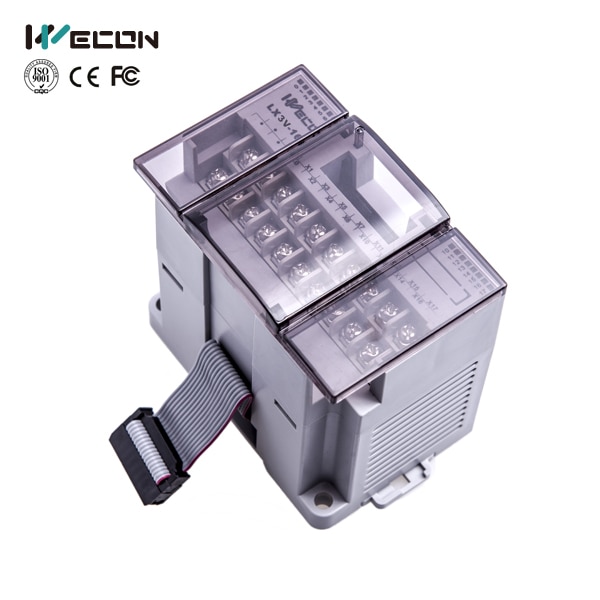

The WECON LX3V-1WTv2 is a 1-channel high-precision digital weighing expansion module designed for WECON LX3V series PLCs. It features a 24-bit A/D converter, supports 4- or 6-wire load cells, and communicates with the main unit using FROM/TO commands, making it ideal for tension, pressure, and load measurement applications.
Key Features and Specifications:
Channels: 1 channel (Single channel input).
Resolution: 24-bit high-precision converter.
Sensor Compatibility: Supports 4-wire or 6-wire strain gauge weighing sensors.
Sampling Speed: Adjustable (7.5 / 10 / 25 / 50 / 60 / 150 / 300 Hz).
Input Range: Unipolar and bipolar, sensitivity 1mV/V - 15mV/V.
Excitation Voltage: 5V DC.
Communication: Interacts with LX3V PLC main units via FROM/TO commands.
Power Supply: 24V DC $pm$20%.
Operating Temp: 0~60°C.
Application: Ideal for load cells, pressure sensors, and tension control, often used in weighing machinery.
The module requires careful wiring of the sensor and proper calibration (zeroing) for accurate weight measurements.
