Name: LX3V-2PT-BD
Brand: WECON
Price: 4500 INR
Availability: InStock

Phone Number

Email Address info@adhiraautomation.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 42, Maruthamalai Gounder Layout, Ramakrishnapuram, Ganapathy, Coimbatore - 641006. Tamilnadu, South India

Coimbatore, India, 641006

Description

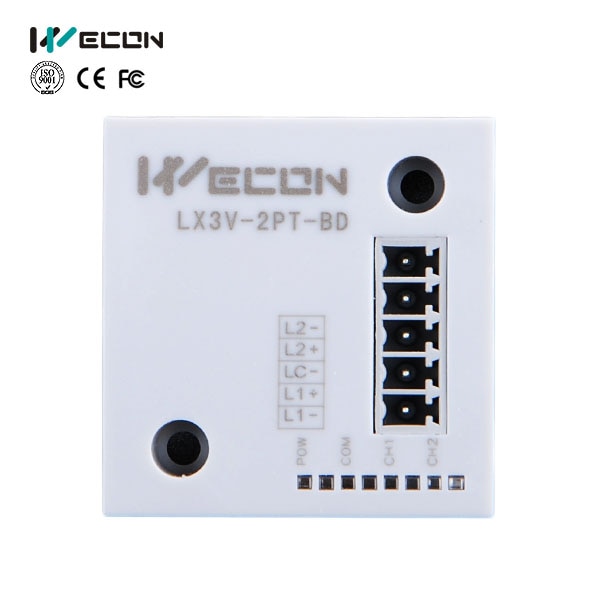

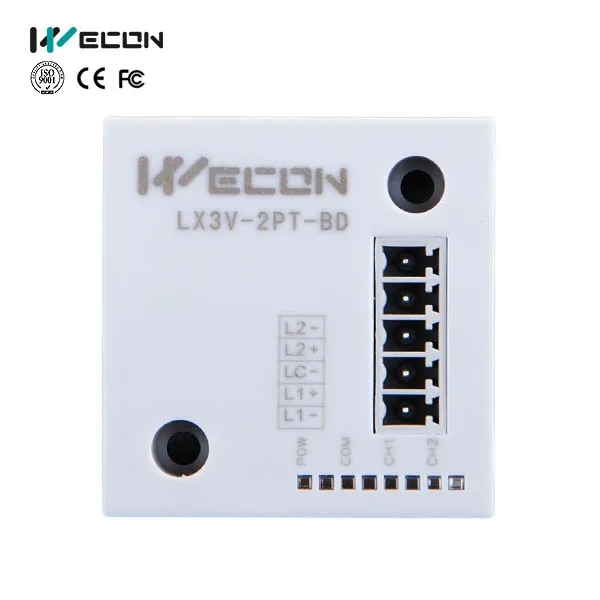

The LX3V-2PT-BD is a compact expansion board for WECON LX3V series PLCs designed to add two channels for inputting PT100 temperature sensors, enabling precise temperature acquisition and monitoring. It mounts directly on top of the PLC, supports -190°C to 600°C range, and stores converted data in special registers. Key Features & Technical Specifications: Function: Converts 2-channel analog PT100 RTD (Resistance Temperature Detector) signals into digital values for PLC processing.Input Type: Supports PT100 3-wire or 2-wire temperature sensors.Temperature Range: Typically handles -190°C to 600°C, providing high-precision data.Installation: Internal “Board” (BD) type, installs directly on top of the PLC without increasing footprint.Application: Ideal for industrial automation control sites, machinery, and manufacturing units.Compatibility: Designed for WECON LX3V series PLC.Resolution/Accuracy: High-resolution performance, with accuracy often exceeding (0.1^{circ }C). Usage Notes: Ensure the power is off during installation.For 3-wire PT100, connect the two same-colored leads to the corresponding input terminals and the third wire to the common terminal.The module provides 2-channel input, though some documentation indicates 2PT2DAI-BD variants or similar modules can support 4 channels.
