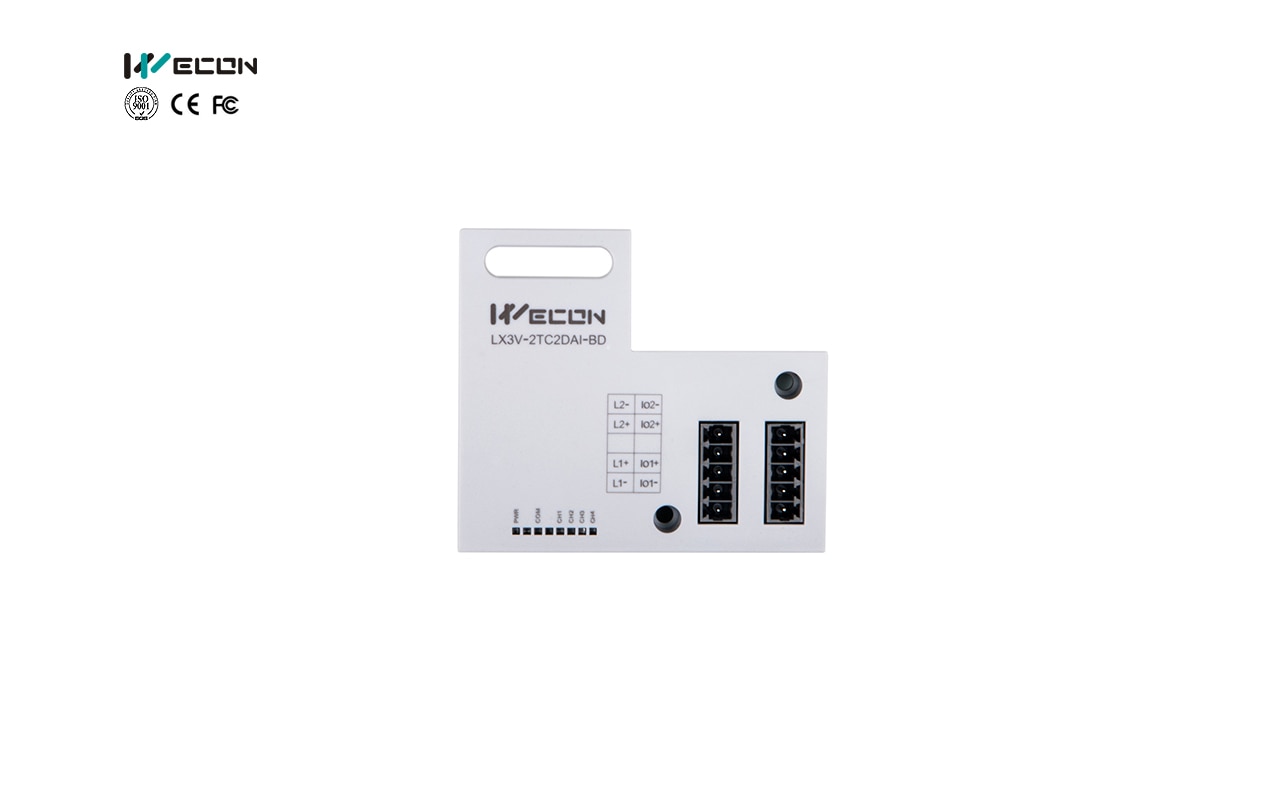

Name: LX3V-2TC2DAI-BD
Brand: WECON
Price: 5625 INR
Availability: InStock

Description

The LX3V-2TC2DAI-BD by Wecon is an expansion baseboard (BD) module for the LX3V Series PLC, featuring 2 thermocouple (K/J type) inputs for temperature measurement and 2 analog (4-20mA) outputs for control. This compact board mounts internally on top of the PLC, supporting features like cold junction compensation and, notably, does not require extra installation space. Key Features and Specifications: Functions: 2 Temperature Channels (TC) + 2 Analog Current Outputs (DAI).Input Types: Thermocouple Type K or J.Output Type: 4-20mA current output.Resolution: 12/14-bit analog-to-digital conversion.Installation: Direct mount on the PLC main unit, saving space.Power: 24VDC (pm ) 10% (supplied by the CPU).Safety: Features optical coupling isolation and cold junction compensation. Key Characteristics: No Adjustment Needed: The module has no manual offset or gain adjustment capabilities.Data Handling: Converted data is stored directly within specific memory locations (special registers) inside the PLC.Application: Suitable for temperature monitoring and control in industrial automation, utilizing TC inputs for sensors and DAI for actuators.
