LX3V-3624MR-A / LX3V-3624MR-A

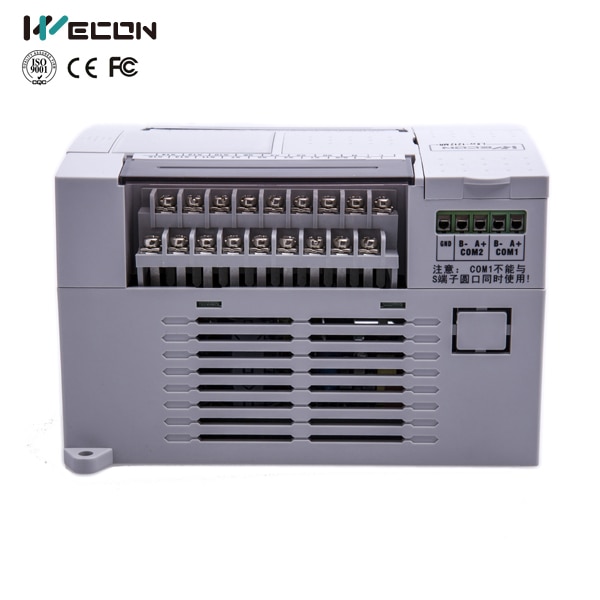

The Wecon LX3V-3624MR-A is an industrial-grade programmable logic controller (PLC) featuring 36 digital input points and 24 relay output points. It operates on 85-265V AC power, supports high-speed counting and pulse output, and utilizes RS422/RS485 communication, making it suitable for automation requiring robust, versatile control.

Key Features and Specifications:

I/O Capacity: 36 digital inputs (DI) and 24 relay outputs (DO).

Power Supply: AC 85-265V (often referred to as 220V type).

Communication: 1x RS422, 1x RS485 (supports 2x BD boards for extra ports).

Performance: High-speed counting (2 channels of 200kHz) and pulse output (up to 4 channels/400kHz).

Expansion: Supports up to 16 expansion modules.

Programming: Supports Ladder Diagram (LD) and Instruction List (IL).

Mounting: Standard DIN rail.

This LX3V series PLC is frequently used in applications requiring flexible I/O configurations and robust communication capability.
