Name: LX3V-4TC
Price: 10160 INR
Availability: InStock

Phone Number

08048036809

Please keep 0 before dialling the number.

Email Address info@adhiraautomation.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 42, Maruthamalai Gounder Layout, Ramakrishnapuram, Ganapathy, Coimbatore - 641006. Tamilnadu, South India

Coimbatore, India, 641006

Description

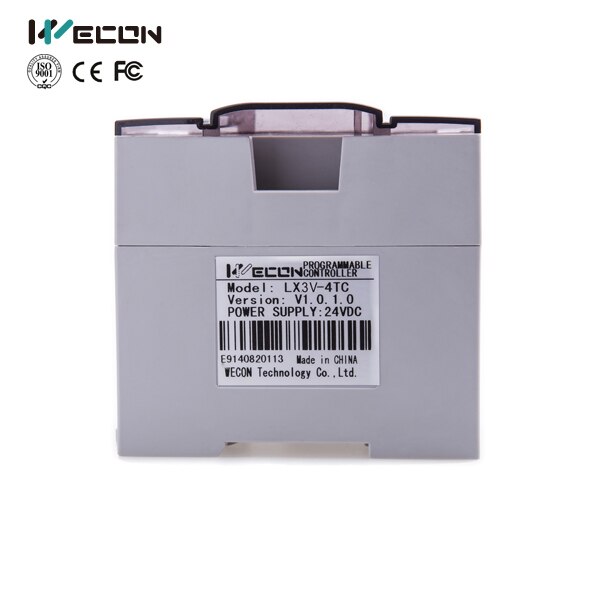

The WECON LX3V-4TC is a 4-channel thermocouple analog input expansion module designed for WECON LX3V series PLCs. It converts Type K or J thermocouple signals into 16-bit digital temperature data (({}^{circ }text{C}) or ({}^{circ }text{F})), communicating via TO/FROM instructions. It features 0.4({}^{circ }text{C})/0.72({}^{circ }text{F}) (Type K) or 0.3({}^{circ }text{C})/0.54({}^{circ }text{F}) (Type J) resolution and requires 5V DC power. Key Features and Specifications: Input Channels: 4 channels for thermocouples (Type K or J).Compatibility: Designed for WECON LX3V series PLC systems.Data Resolution: Converts analog signals to 16-bit digital values.Temperature Units: Supports both Celsius (({}^{circ }text{C})) and Fahrenheit (({}^{circ }text{F})).Data Access: Parameters and data are adjusted via software using TO/FROM instructions.Power Supply: Consumes 90mA from the 5V DC supply of the main PLC unit.Resolution Details: 0.4({}^{circ }text{C})/0.72({}^{circ }text{F}) for Type K; 0.3({}^{circ }text{C})/0.54({}^{circ }text{F}) for Type J. The module requires proper EMI/EMC precautions, such as shielded cables, to prevent measurement errors in noisy environments.
