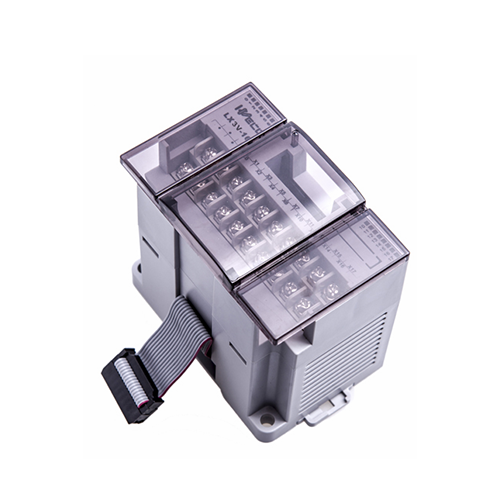

LX3V-8EYT / LX3V-8EYR

1.The WECON LX3V-8EYT is an 8-channel transistor output expansion module designed for WECON LX3V series PLCs. It provides high-speed, photo-coupled NPN transistor outputs (0.5A per point) for precise control of devices like solenoids and relays. Key features include DC 5V~30V power, <0.2ms response time, and DIN-rail panel mounting, offering enhanced, flexible I/O expansion for industrial automation.

Key Technical Specifications & Features:

Module Type: Transistor Output Expansion Module.

Output Points: 8 Channels (NPN/Source type).

Output Type: Transistor (Photo-coupling insulation).

Output Rating: 0.5A per point; 1.6A for eight points (lamp load).

Voltage Range: DC 5V - 30V.

Response Time: < 0.2ms (OFF to ON / ON to OFF).

Mounting: Panel/DIN Rail.

Compatibility: WECON LX3V Series PLC main units.

Common Applications:

High-speed actuator control (solenoids, relays).

Industrial automation machinery requiring fast switching.

Expanding I/O capacity of WECON LX3V PLCs.

2.The Wecon LX3V-8EYR is an 8-channel relay output expansion module designed for WECON LX3V series programmable logic controllers (PLCs). It provides 8 points of robust, electrically insulated, mechanical relay outputs for controlling industrial devices like motors and lights, featuring a 2A output per point capacity. Key Features & Technical Specifications: Output Channels: 8-point relay outputs (mechanical).Capacity: 2A per point, max 8A total, supporting up to 100W lamps.Voltage Range: Supports AC 250V or DC 30V power supplies.Response Time: Approx. (10text{ms}) (ON->OFF and OFF->ON).Status Indicators: Built-in LED lights for channel status.Compatibility: Designed for WECON LX3V series PLCs.Mounting: Compact design with DIN rail or panel mounting capability.Application: Suitable for industrial automation, providing electrical isolation and switching for various loads.
