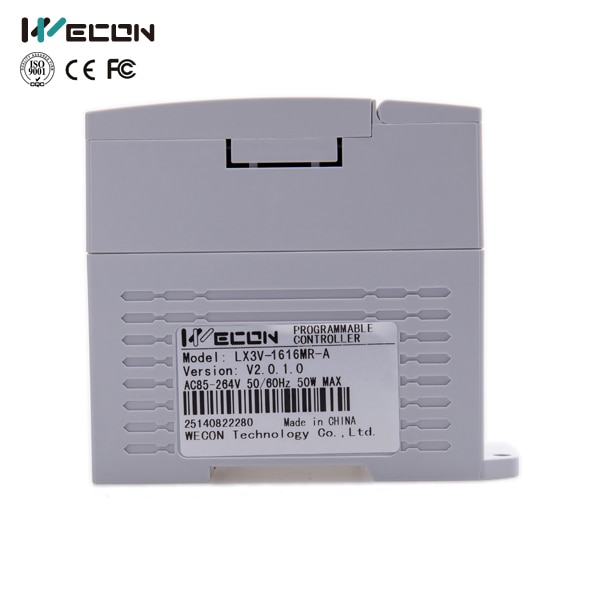

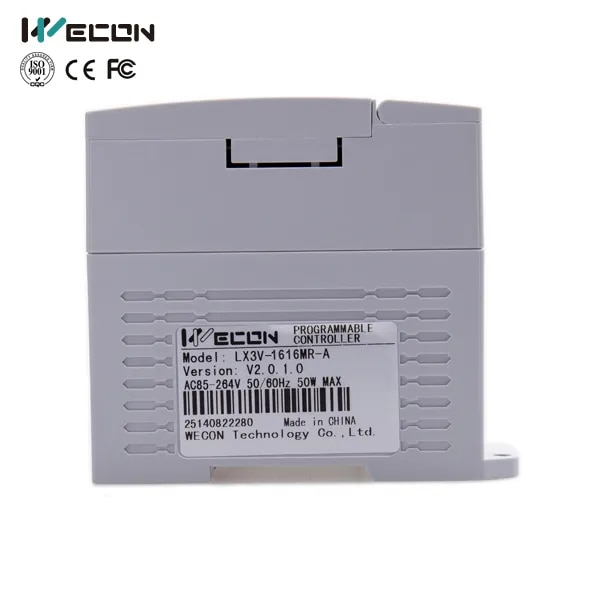

LX3V1616MT-A / LX3V1616MR-A

The Wecon LX3V-1616MT-A and LX3V-1616MR-A are compact, high-performance PLCs with 16 input and 16 output points, operating on AC85-265V power. The MT model features transistor outputs for high-speed pulse motion control, while the MR model uses relay outputs for general-purpose switching. Both support RS422/RS485 communication, 2 BD boards, and are suitable for diverse industrial automation

Key Specifications for LX3V-1616MT-A / MR-A

Input Points: 16 (Digital, DC24V).

Output Points: 16.

Output Type:

LX3V-1616MT-A: Transistor (MT) - Suitable for high-speed pulse output (up to 100K-200K Hz).

LX3V-1616MR-A: Relay (MR) - Suitable for driving load relays, solenoid valves.

Power Supply: AC85-265V.

Communication: RS422, RS485 (support for 2 BD boards).

High-Speed Counting: 6 channels (200K$times$2, 10K$times$4).

Expandability: Supports up to 16 extension modules.

Programming: Compatible with Wecon PLC software and standard 2N protocols.

Common Applications

LX3V-1616MT-A: Used for precise motion control, such as stepper motors and servo systems.

LX3V-1616MR-A: Used for general-purpose IO control in industrial automation.

Both units are designed for reliability, featuring high-speed IO, easy parameter adjustment, and compact DIN rail mounting.
