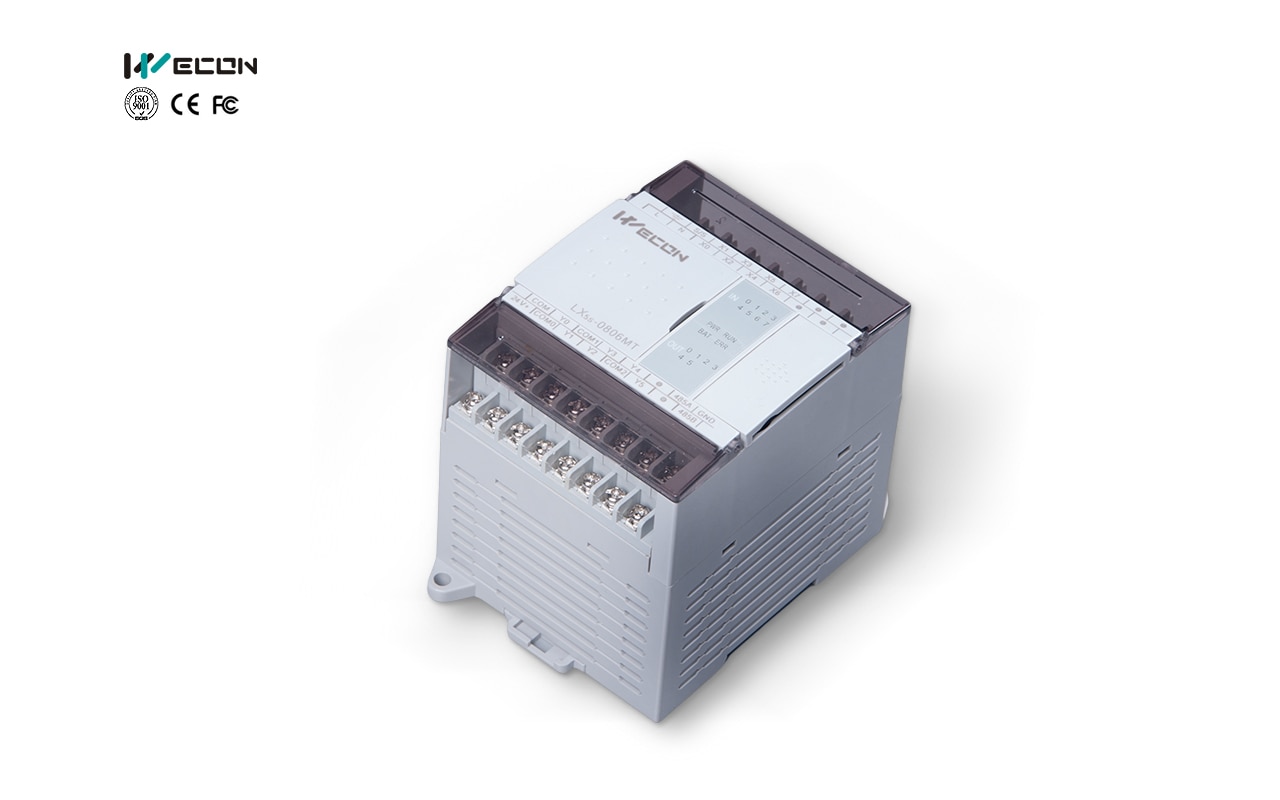

Name: LX5S-1208MT-A / LX5S-1208MR-A
Brand: WECON
Price: 7950 INR
Availability: InStock

Phone Number

08048036809

Please keep 0 before dialling the number.

Email Address info@adhiraautomation.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 42, Maruthamalai Gounder Layout, Ramakrishnapuram, Ganapathy, Coimbatore - 641006. Tamilnadu, South India

Coimbatore, India, 641006

Description

The WECON LX5S-1208MT-A and LX5S-1208MR-A are high-performance compact PLCs featuring 12 digital inputs and 8 digital outputs, operating at fast execution speeds ((0.03mu ssim 0.08mu s)). Designed for industrial automation, they support 200kHz high-speed pulse inputs/outputs, PID control, and BD board expansion. The MT-A uses transistor outputs, while MR-A uses relay outputs. Key Features and Specifications: Model Breakdown:LX5S-1208MT-A: Transistor Output (typically for motion control/fast switching).LX5S-1208MR-A: Relay Output (typically for high-load, AC/DC switching).I/O Points: 12 Digital Inputs (DI) and 8 Digital Outputs (DO).Performance: Fast execution speed of (0.03mu ssim 0.08mu s) per instruction.Pulse Control: Supports 2 channels of high-speed pulse output (up to 200kHz) and high-speed counter interrupts.Communication: 2 Serial Ports (RS485) supporting up to 921600 baud rate.Power Supply: AC Power Supply (indicated by '-A' suffix).Functionality: Supports E-CAM, electronic gear, PID, and self-tuning.Expansion: Supports BD boards and LX3V series expansion modules.Software: Uses LX5V or similar Wecon PLC programming software. These PLCs are designed for compact, cost-effective, and high-speed industrial control applications.
