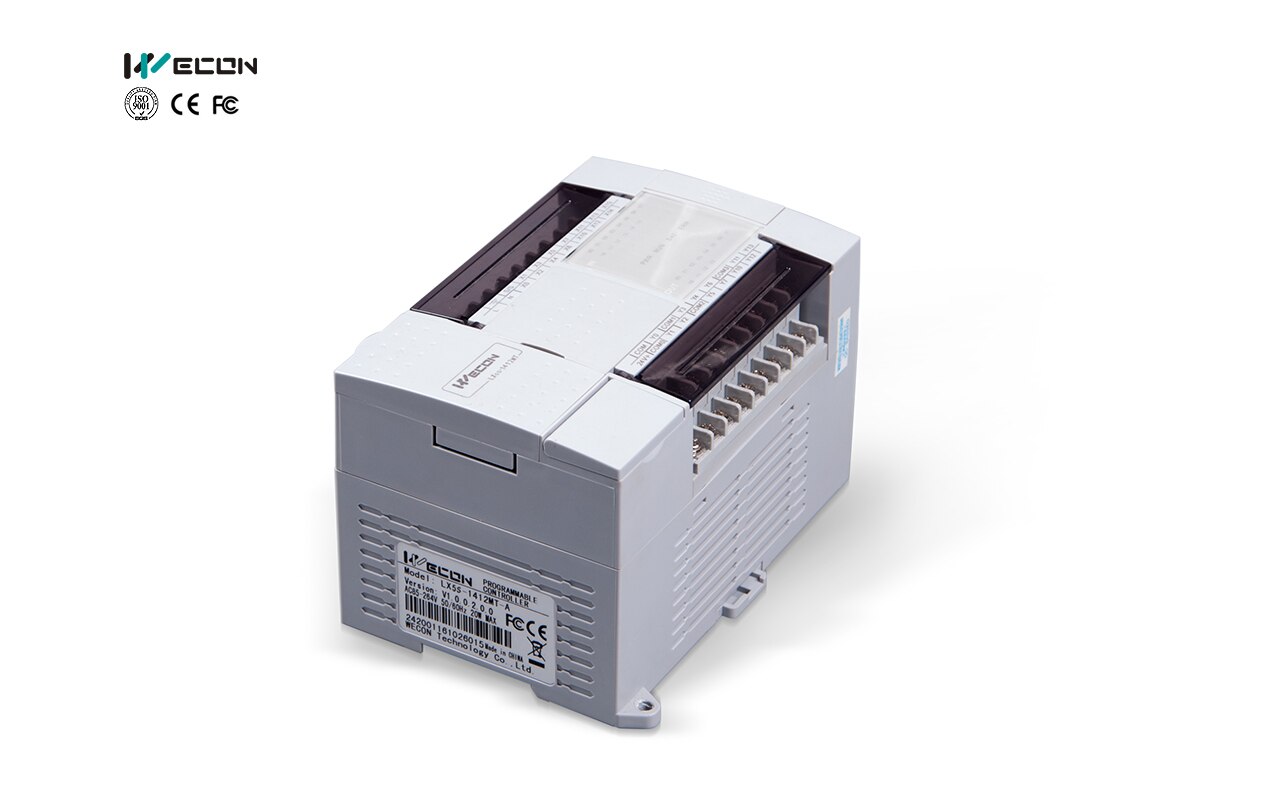

LX5S-1412MR-AN / LX5S-1412MT-AN

The WECON LX5S-1412MT-AN is a high-performance, compact PLC with 14 digital inputs and 12 transistor outputs (14DI/12DO), operating on 230Vac. It features rapid 0.01-0.03 µs execution speeds, high-speed counting/pulse outputs, 512KB storage, and supports Ethernet, RS485, and E-CAM functionalities for automation.

Key Technical Specifications and Features

Model: LX5S-1412MT-AN (Transistor Output, 230Vac).

I/O Configuration: 14 Inputs / 12 Outputs (Transistor).

Performance: High-speed processing (0.01-0.03 µs).

High-Speed I/O: Supports 2-channel 150KHz single-phase inputs, 1-channel 100KHz AB phase input, and 2-channel 200KHz outputs.

Communication: 2x RS485 ports, 1x RS422 port, and 1x Ethernet port (optional).

Expansion: Supports up to 16 expansion modules and 1x BD module.

Functionality: Supports E-CAM, electronic gear, PID/CCPID auto-tuning, and 100 high-speed counter interrupts.

Programming: Compatible with Wecon PLC software.

This PLC is designed for advanced industrial automation applications requiring fast, precise control in a compact form factor.
