LX5S-1616MR-AN / LX5S-1616MT-AN

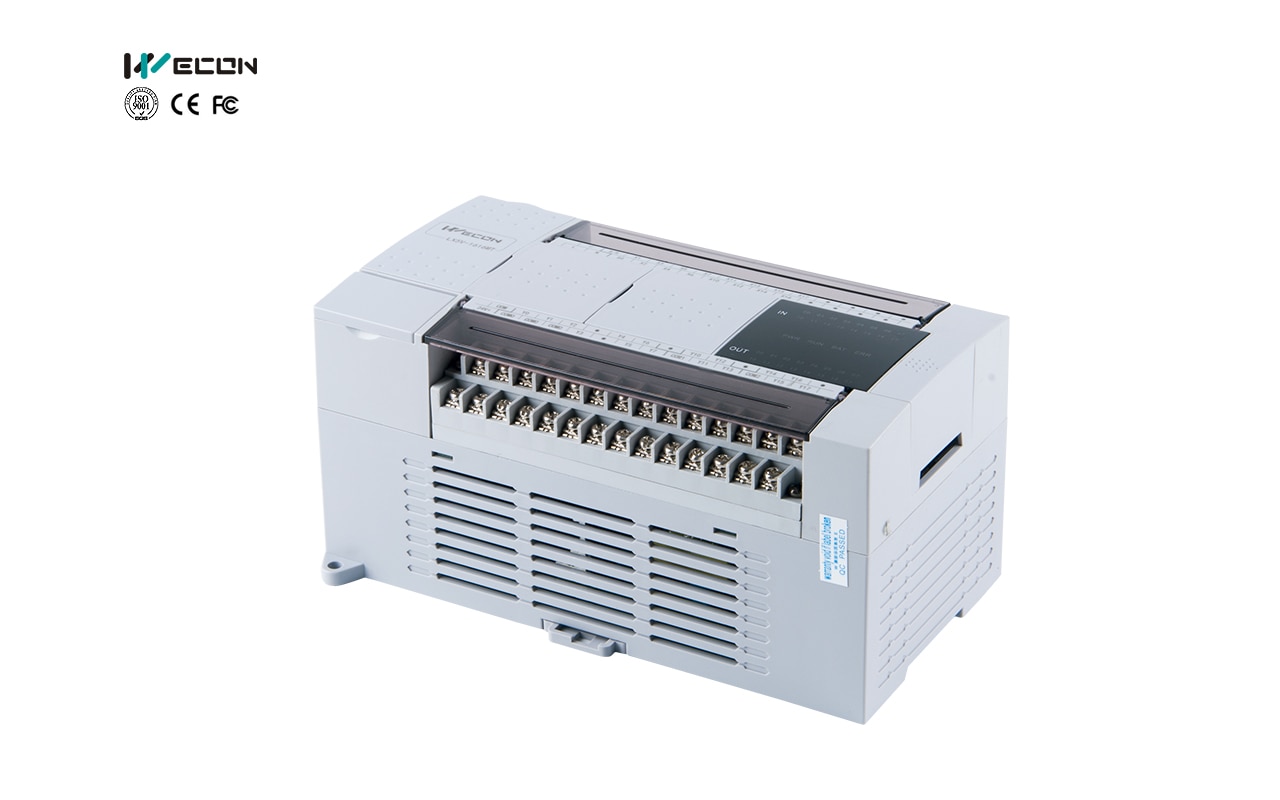

The WECON LX5S-1616MR-AN and LX5S-1616MT-AN are high-performance, cost-effective programmable logic controllers (PLCs) designed for industrial automation. They are part of the LX5S Ethernet series, featuring 16 digital inputs and 16 digital outputs (32 points total).

Key Differences:

LX5S-1616MR-AN: Features Relay outputs (ideal for high-voltage or AC loads).

LX5S-1616MT-AN: Features Transistor outputs (NPN) (ideal for high-speed, low-voltage DC switching).

Common Features & Specifications (LX5S-1616M Series):

Input/Output: 16 Digital Inputs (DI) / 16 Digital Outputs (DO).

Power Supply: 220VAC (indicated by the 'A' or 'AN' suffix).

Communication: Includes 2 RS485 serial ports, support for 2 BD modules, and built-in Ethernet port (indicated by the 'N' or ethernet series classification).

High-Speed I/O: Supports 6-channel 150KHz single-phase input and 3-channel 100KHz AB-phase input. Transistor models (MT) support 2-channel 200KHz pulse outputs.

Functionality: Supports E-CAM, electronic gear, PID auto-tuning, and 100-channel high-speed counter interrupts.

Programming: Compatible with WECON PLC Editor (Ladder/Instruction List).

Expansion: Supports up to 16 extension modules.

Summary Table:

Feature LX5S-1616MR-AN LX5S-1616MT-AN

Output Type Relay Transistor (NPN)

I/O Count 16 In / 16 Out 16 In / 16 Out

Power 220VAC 220VAC

Ethernet Yes (Built-in) Yes (Built-in)

Application General Switching, High Load High-Speed Positioning, Motion Control

Both models are designed to be compact and suitable for various automation applications, with high-speed processing and robust anti-interference capabilities.
