LX5S-1616MT-A / LX5S-1616MR-A
Description

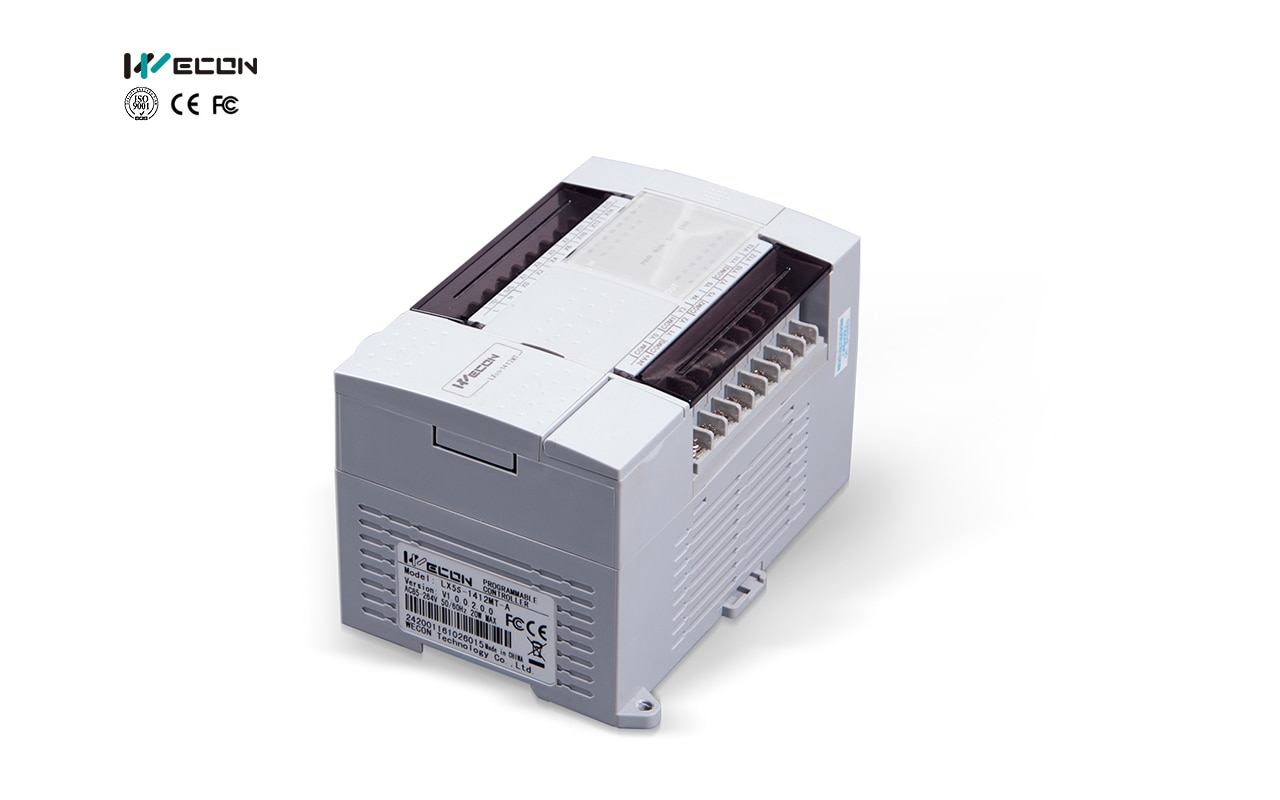

The WECON LX5S-1616MT-A and LX5S-1616MR-A are high-performance, compact Programmable Logic Controllers (PLCs) from the LX5S Ethernet series, designed for industrial automation applications. Both models feature 16 input and 16 output points, 512KB system storage, and support for 2 BD boards and expansion modules.
Key Differences
LX5S-1616MT-A: Features Transistor outputs (ideal for high-speed pulse motion control).
LX5S-1616MR-A: Features Relay outputs (ideal for driving higher voltage/current loads).
Common Features and Specifications
Input Voltage: AC 85~265V.
Performance: 0.03us~0.08us execution speed, 48,000-step program capacity.
High-Speed I/O (MT model): 6-channel 150KHz single-phase input, 3-channel 100KHz AB phase input, and 2-channel 200KHz pulse outputs.
Communication: 2x RS485 ports, 1x RS422 port, optional Ethernet port, and Micro USB for programming.
Advanced Functions: Supports E-CAM, electronic gear, PID, and CCPID auto-tuning.
Mounting: Panel Mount.
Typical Applications
These PLCs are widely used for motion control and automation in various industries, including packaging, printing, and material handling.
