Description

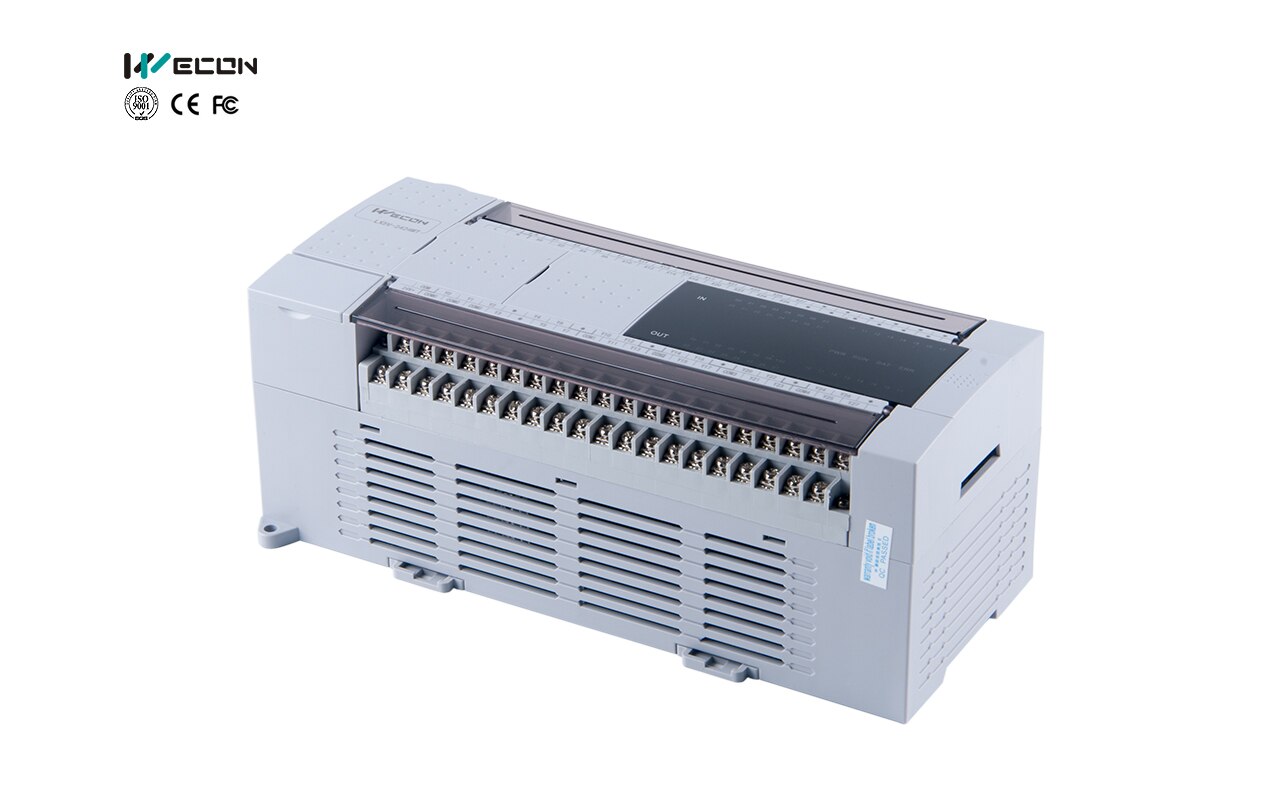

The WECON LX5S-2416MT-A and LX5S-2416MR-A are high-performance Programmable Logic Controllers (PLCs) from the LX5S series designed for advanced, cost-effective industrial automation. Both units feature 24 digital inputs and 16 digital outputs and are typically powered by 230Vac. Common Features (Both Models) Series: LX5S (Ethernet series, high-performance). I/O Configuration: 24 Digital Inputs / 16 Digital Outputs (Total 40 I/O). Performance: High-speed processing with 0.01-0.03 µs per instruction. Memory/Storage: 512KB system storage. Pulse Output: 200 kHz high-speed pulse output, supporting E-CAM, electronic gear, and acceleration/deceleration. Communication: Supports RS422/RS485, with options for Ethernet, and compatibility with LX3V-series BD modules. Power: AC 85~265V 50~60Hz. Key Differences Feature LX5S-2416MT-A LX5S-2416MR-A Output Type Transistor (NPN) Relay Best For Motion control, high-speed switching High-voltage load, general IO switching Response Time <0.2ms (<5us for pulse) <10ms Summary of Models LX5S-2416MT-A: Transistor output model. It supports 2-channel 200kHz high-speed pulse outputs (HSPO) for motion control, such as driving servo motors. LX5S-2416MR-A: Relay output model. It is designed for switching heavier loads, offering reliability in environments requiring electrical isolation via mechanical relays. Both models are compatible with expansion modules (up to 16 modules) and utilize PI Studio software for programming.
