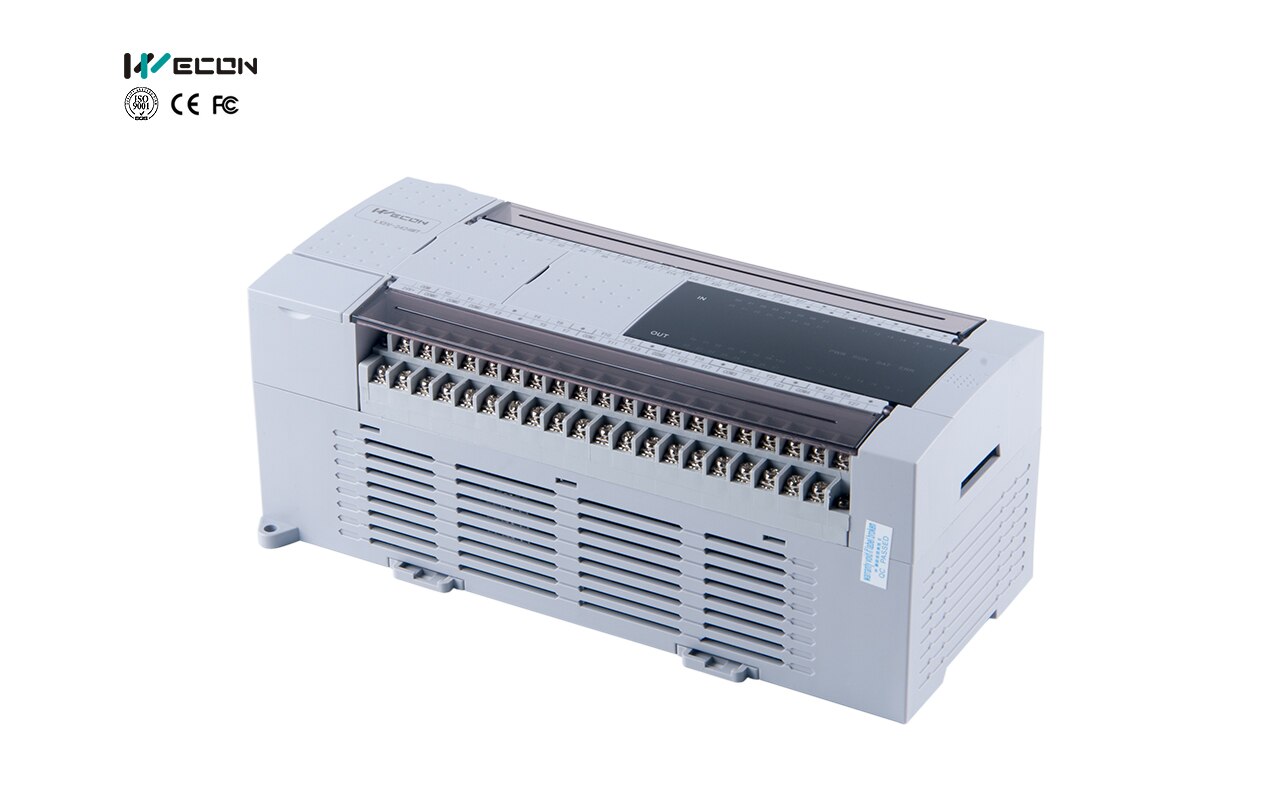

LX5S-2424MR-AN / LX5S-2424MT-AN

The WECON LX5S-2424MR-AN and LX5S-2424MT-AN are high-performance Programmable Logic Controllers (PLCs) from the LX5S Ethernet series. They feature a 24-input and 24-output configuration designed for complex industrial automation, motion control, and high-speed processing.

Both models include Ethernet ports, 2 RS485 ports, and support for 2 BD boards and up to 16 extension modules.

Core Technical Data (Shared)

Series: WECON LX5S (Ethernet series)

Input Points: 24 (Digital)

Output Points: 24 (Digital)

Input Voltage: AC 85~265V

System Storage: 512KB

Execution Speed: 0.01µs~0.03µs

Communication: 2 Serial Ports (RS485), Ethernet, USB

Features: Support for E-CAM, electronic gear, PID/CCPID self-tuning, 100us high-speed timer interrupt

Key Differences

LX5S-2424MT-AN (Transistor Output):

Output Type: Transistor

Application: Suitable for high-speed pulse output applications, such as servo motor control.

LX5S-2424MR-AN (Relay Output):

Output Type: Relay

Application: Suitable for driving loads that do not require high-speed switching.

Features of the LX5S Series

High-Speed I/O: Typically 8-channel 150K Hz single-phase inputs and 8-channel 100K Hz AB phase inputs.

Modifications: Allows modification of frequency and position during pulse running.

Flexibility: Supports LX 3V series modules and BD boards.

These PLCs are designed for high-speed, precise control in industrial applications.
