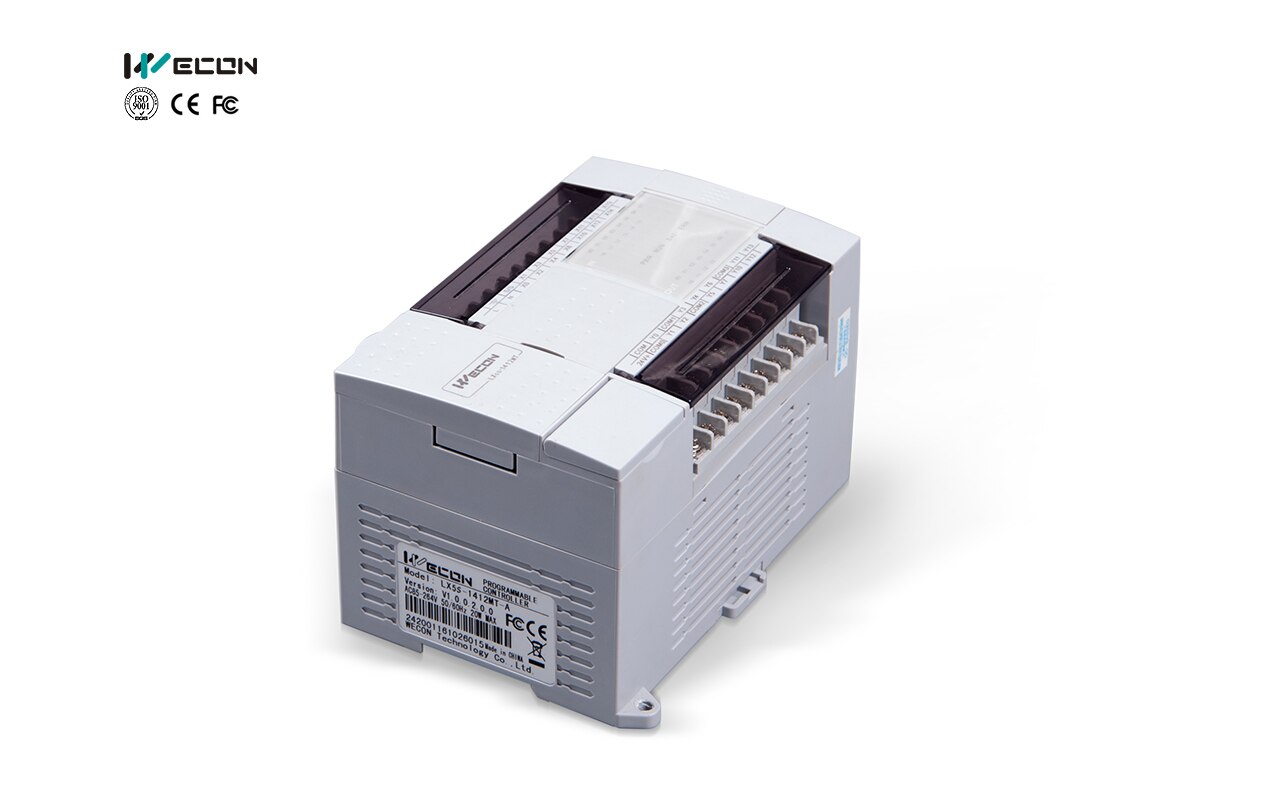

LX5S-2424MT-A / LX5S-2424MR-A

The WECON LX5S-2424MT-A and LX5S-2424MR-A are compact, high-performance Programmable Logic Controllers (PLCs) part of the LX5S Ethernet series, designed for industrial automation applications requiring fast processing and precise motion control.

Core Specifications (Both Models):

Series: WECON LX5S Ethernet Series

Input/Output: 24 Digital Inputs / 24 Digital Outputs (48 I/O total)

Power Supply: AC 85~265V 50~60Hz (indicated by “-A” suffix)

System Storage: 512KB

Communication: 2 Serial Ports (RS422/RS485) and built-in Ethernet port

Expansion: Supports 2 BD (Board) modules and 3V expansion modules

Speed: Fast execution speed (0.01-0.03 µs per instruction)

Key Differences:

LX5S-2424MT-A: Features Transistor outputs (MT), which are ideal for high-speed pulse output, motion control, and positioning applications.

LX5S-2424MR-A: Features Relay outputs (MR), suitable for driving external loads requiring relay switching.

Key Features:

Motion Control: Supports E-CAM, electronic gear, and high-speed pulse output with acceleration/deceleration.

High-Speed Input/Output: Supports up to 6 channels of high-speed pulse input and, for MT models, high-speed pulse output.

Application: Ideal for various automation equipment needing, fast, precise control with small size.

Programming: Supports ladder diagram and instruction list programming.
