LX5S-3624MR-AN / LX5S-3624MT-AN

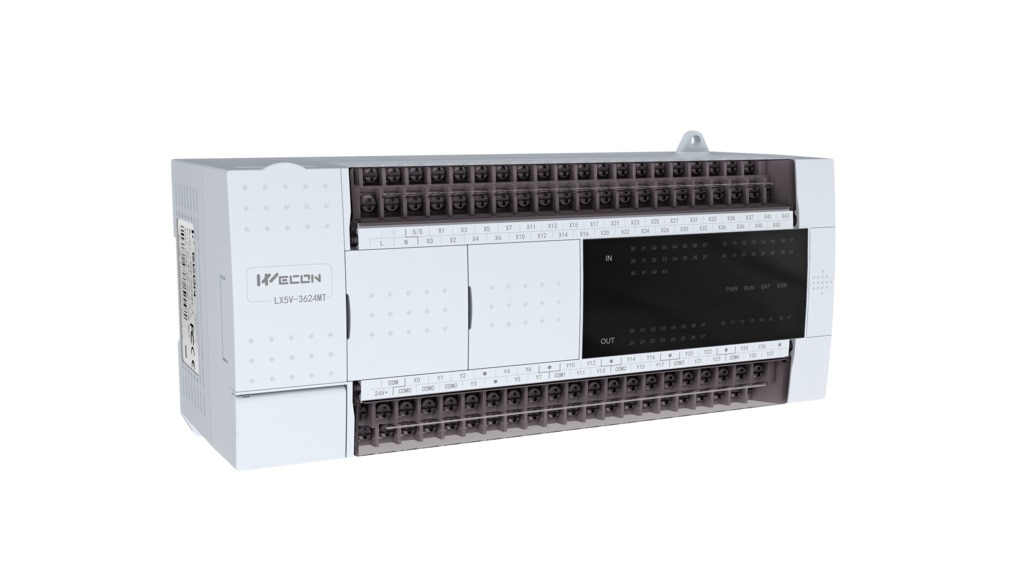

The WECON LX5S-3624MR-AN and LX5S-3624MT-AN are high-performance Programmable Logic Controllers (PLCs) from the LX5S Ethernet series. They feature 36 digital inputs and 24 digital outputs (3624), designed for complex industrial automation, motion control, and high-speed processing.

Key Differences:

LX5S-3624MT-AN: Transistor Output (suitable for high-speed pulse/motion control).

LX5S-3624MR-AN: Relay Output.

“AN” Suffix: Indicates AC power supply (85~265V) and built-in Ethernet functionality.

Core Technical Specifications

Input/Output: 36 Inputs / 24 Outputs.

Power Supply: AC 85~265V, 50~60Hz.

Output Type:

MT (Transistor): Supports 2-4 channels of high-speed pulse output (up to 200kHz).

MR (Relay): Generally for high-current, low-speed switching.

Processor & Memory: High-speed execution (0.01-0.03 µs per instruction), 512KB system storage.

Communication:

1x 100M Ethernet Port.

2x RS485 Serial Ports.

Supports 2x BD board expansion.

High-Speed Input: 6-channel 150K Hz single-phase + 3-channel 100K Hz AB phase inputs.

Programming: Supports PLC Studio (Ladder/Instruction List).

Environmental: Operating Temp: 0~55℃.

Key Features

Motion Control: Supports E-CAM, electronic gear, and PID self-tuning.

High-Speed Counting: 6 channels of high-speed counting (150kHz) and 100-channel interrupt capabilities.

Expandability: Supports up to 16 extension modules.

Industrial Application: Designed for fast, precise, and efficient automation.

These units are designed for applications requiring robust Ethernet connectivity, high-speed pulse outputs, and high-density I/O, such as packaging machinery, sorting machines, and multi-axis positioning systems.
