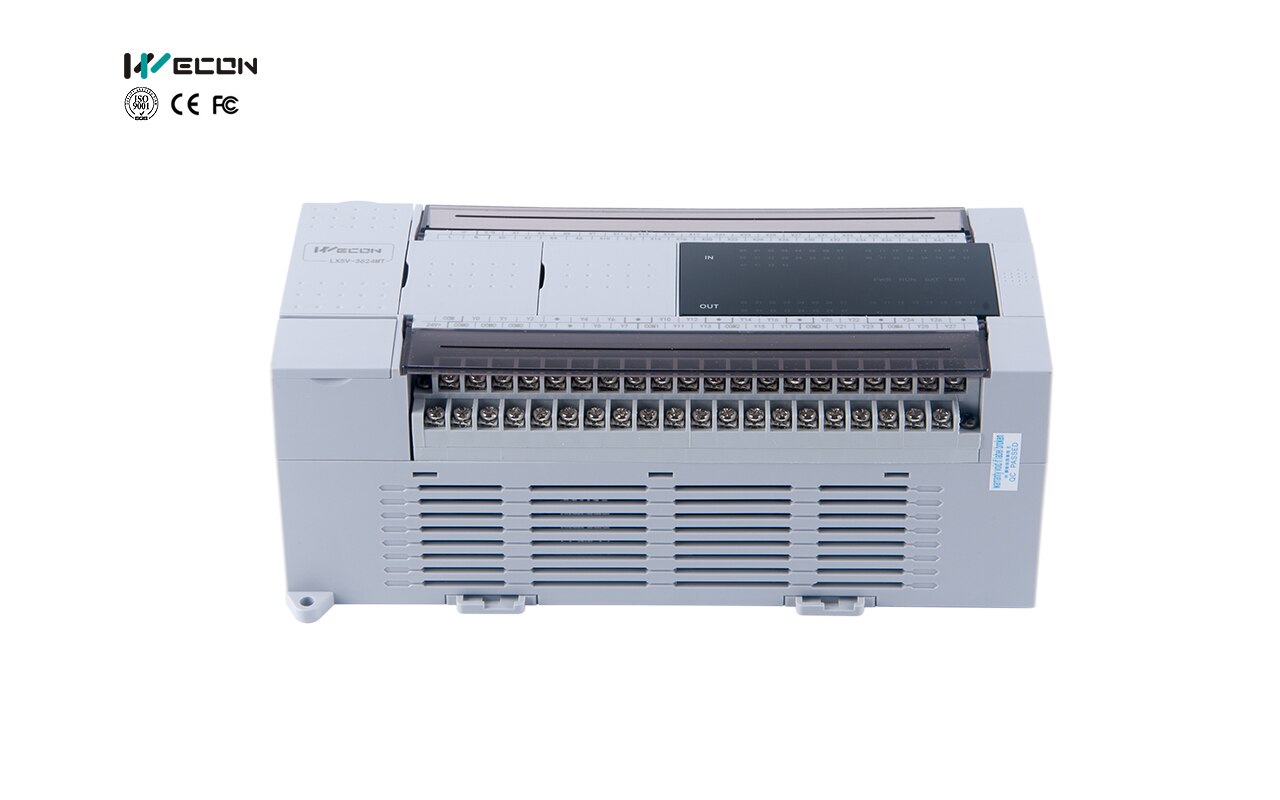

LX5S-3624MT-A / LX5S-3624MR-A

The WECON LX5S-3624MT-A and LX5S-3624MR-A are high-performance Programmable Logic Controllers (PLCs) from the WECON LX5S Ethernet series. They feature 36 digital inputs and 24 digital outputs, designed for industrial automation, high-speed motion control, and efficient processing.

The primary difference between the two models lies in their output type:

LX5S-3624MT-A: Transistor Output (suitable for high-speed pulse outputs).

LX5S-3624MR-A: Relay Output (suitable for driving loads directly).

Common Specifications (Both Models)

Digital I/O: 36 Inputs / 24 Outputs.

Power Supply: AC 85~265V 50~60Hz.

Processor: High-speed, with execution speeds of 0.01-0.03 µs per instruction.

Memory/Storage: 512KB system storage.

Communication: 2 Serial Ports (RS422/RS485), 1 Micro USB port for programming, and optional Ethernet.

Expansion: Supports up to 16 extension modules and 2 BD boards.

High-Speed Input: 6 channels of 150KHz single-phase input.

Functions: Supports E-CAM, electronic gear, and PID/CCPID self-tuning.

Mounting: DIN-Rail.

Differences

Feature LX5S-3624MT-A LX5S-3624MR-A

Output Type Transistor (MT) Relay (MR)

High-Speed Pulse Output Yes (2 channels/200KHz) No (N/A)

Best Application Motion Control (Servo/Stepper) General Load Switching

Key Features

Real-time Modification: Ability to modify frequency and position during pulse running.

Interrupts: Supports 100μs high-speed timer interrupts and up to 100 high-speed counter interrupts.

Robustness: Aluminium alloy panel for better heat dissipation and anti-interference.

Software: Programmed using WECON PLC Editor1/2.

Both models are designed for demanding automation tasks requiring fast processing, such as packaging machinery, textile equipment, and small-scale motion control systems.
