Name: LX5V-1412MT-A
Brand: WECON
Price: 12600 INR
Availability: InStock

Phone Number

08048036809

Please keep 0 before dialling the number.

Email Address info@adhiraautomation.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 42, Maruthamalai Gounder Layout, Ramakrishnapuram, Ganapathy, Coimbatore - 641006. Tamilnadu, South India

Coimbatore, India, 641006

Description

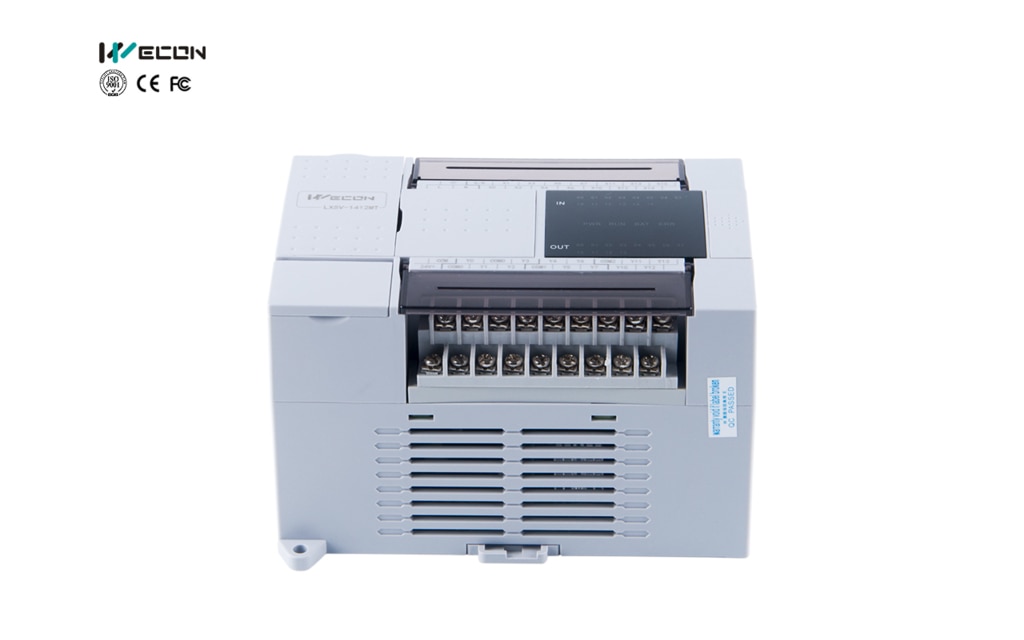

The WECON LX5V-1412MT-A is a high-speed, 26-point (14 inputs/12 transistor outputs) PLC designed for industrial automation. It features fast execution speeds ((0.01mu ssim 0.03mu s)), 48,000-step program capacity, and supports advanced functions like E-CAM, PID, and high-speed counting. It operates on 220V AC, includes Ethernet and RS485 ports, and supports 16 extension modules. Key Features and Specifications: I/O Configuration: 14 digital inputs and 12 transistor (NPN) outputs.High-Speed I/O: 4-channel 150KHz single-phase inputs, 4-channel 100KHz AB phase inputs, and 4-channel 200KHz pulse outputs.Performance: Features a 48,000-step program capacity and supports 8-channel external interrupts and 100(mu s) timer interrupts.Communication: Includes 2 RS485 ports, 1 Ethernet port, and 1 BD board slot.Power Supply: Operates on AC (85sim 265V) ((50sim 60Hz)).Expansion: Supports up to 16 expansion modules.Programming: Compatible with WECON PLC Editor. The LX5V-1412MT-A is suitable for precision control in manufacturing and automation, focusing on high-speed pulse control.
