LX5V-1412MT-AN
Description

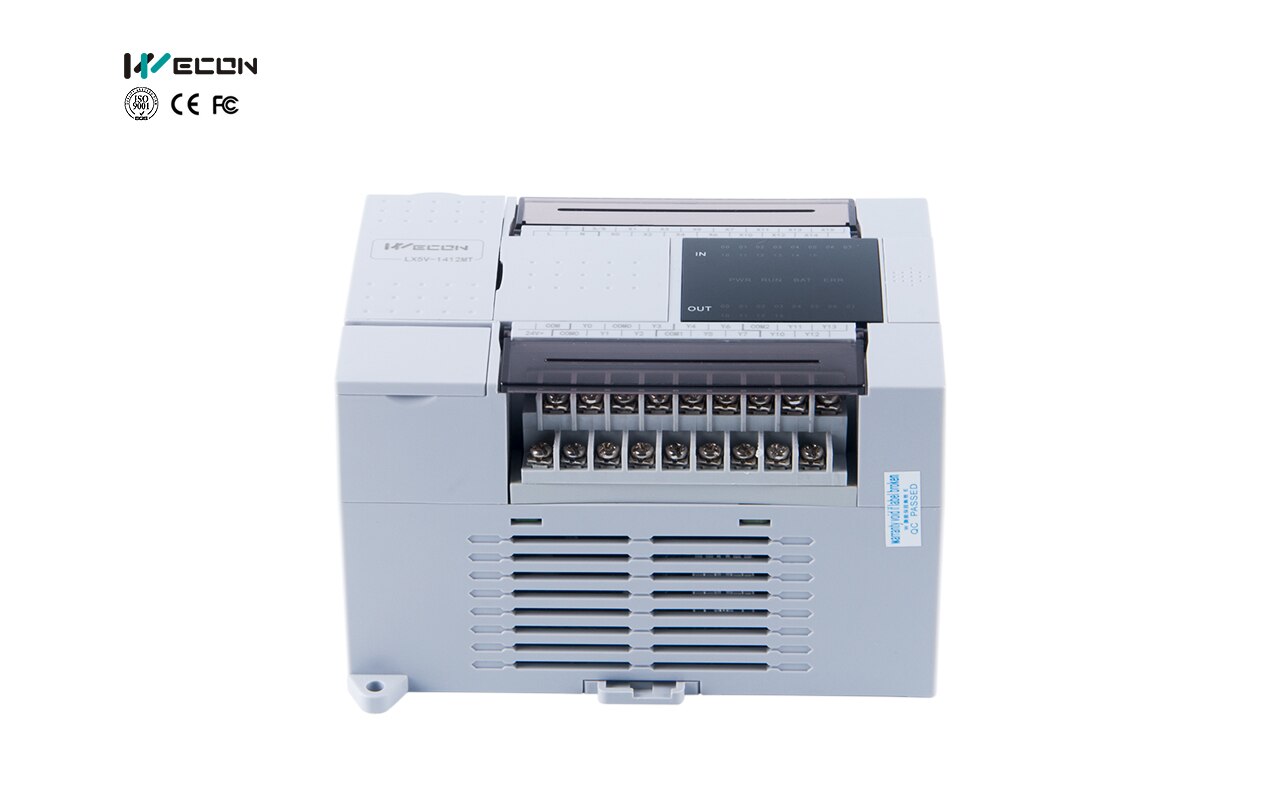

The WECON LX5V-1412MT-AN is a high-performance, compact PLC featuring 14 digital inputs and 12 transistor (NPN) outputs, designed for industrial automation. It supports Ethernet, 2 RS485 ports, and 4-channel 200kHz high-speed pulse output. It offers rapid 0.01-0.03μs execution speeds, 48,000-step program capacity, and supports 8-channel external interrupts.
Key Features and Specifications:
Model: LX5V-1412MT-AN (AC power supply, NPN Transistor Output).
I/O: 14 Inputs / 12 Outputs.
Performance: 0.01us~0.03us execution speed, 48,000 steps program capacity.
Communication: Built-in Ethernet, 2 x RS485 ports.
High-Speed Counting/Pulse: 4-channel 150KHz inputs, 4-channel 200KHz outputs.
Functionality: Supports E-CAM, PID, and 8-channel interrupt.
Compatibility: Supports LX3V series analog/expansion modules.
Common Applications:
Manufacturing and Machinery.
Automotive and Control Systems.
Precision positioning tasks.
