LX5V-2424MT-A
Description

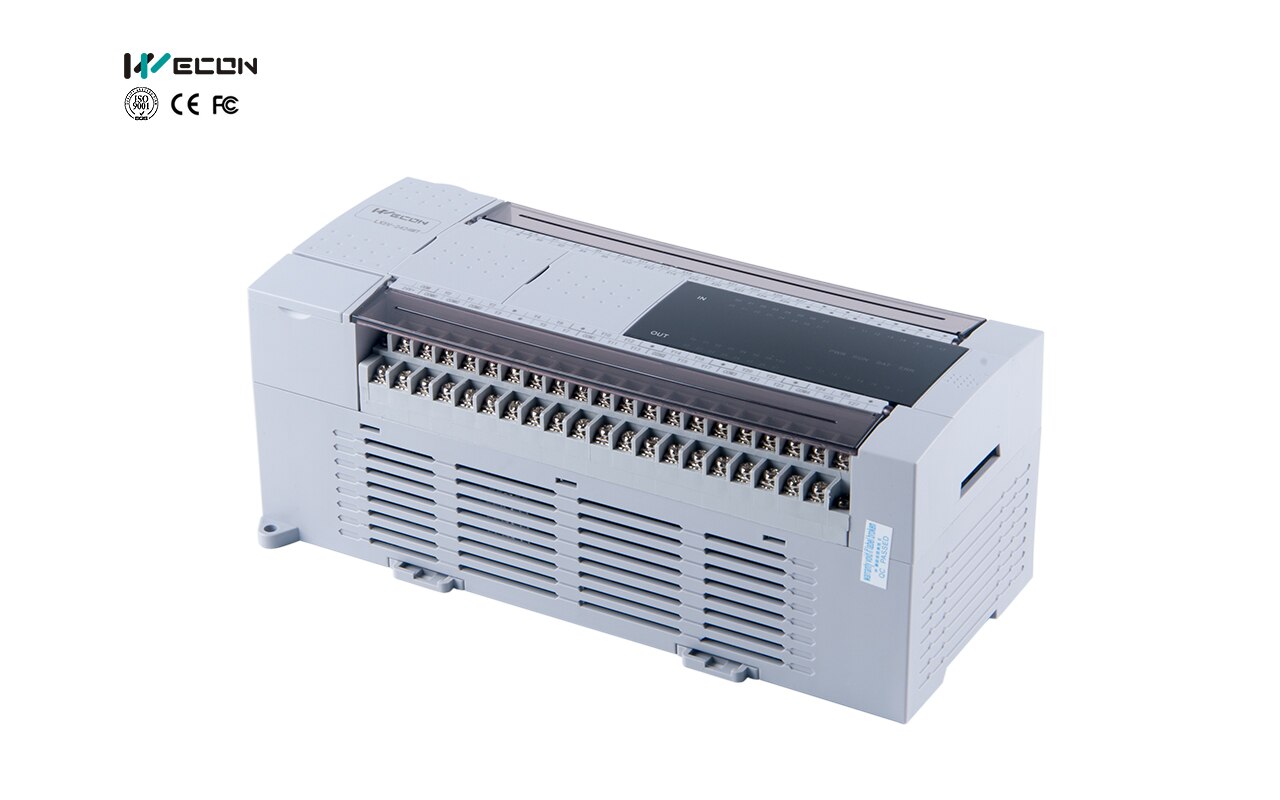

The WECON LX5V-2424MT-A is a high-performance, compact PLC (Programmable Logic Controller) featuring 24 DC inputs and 24 transistor outputs. It is designed for industrial automation with fast 0.01-0.03µs execution speeds, 48,000-step program capacity, 8-channel high-speed pulse output (200kHz), and 8-channel high-speed counting (up to 150kHz).
Key Features and Technical Specifications:
Model: LX5V-2424MT-A
Type: Transistor Output (MT), suitable for high-speed switching and positioning control.
Power Supply: AC85-265V power input (A indicates AC power supply).
Performance: 0.01µs~0.03µs high-speed instruction execution.
Memory: 48,000 steps (48K) of program capacity and 512KB system storage.
High-Speed I/O: 8-channel 150KHz inputs (can act as interrupts) and 8-channel 200KHz pulse outputs.
Communication: Supports RS485 and RS422 ports, with compatibility for up to 2 BD modules (excluding communication BD modules in some models).
Advanced Features: Supports E-CAM, electronic gear, PID and CCPID auto-tuning, and 100µs high-speed timer interrupts.
Expansion: Supports up to 16 extension modules.
The LX5V-2424MT-A is part of the WECON LX5V series and is widely used for precise industrial automation, motion control, and high-speed data processing tasks.
