LX5V-2424MT-AN
Description

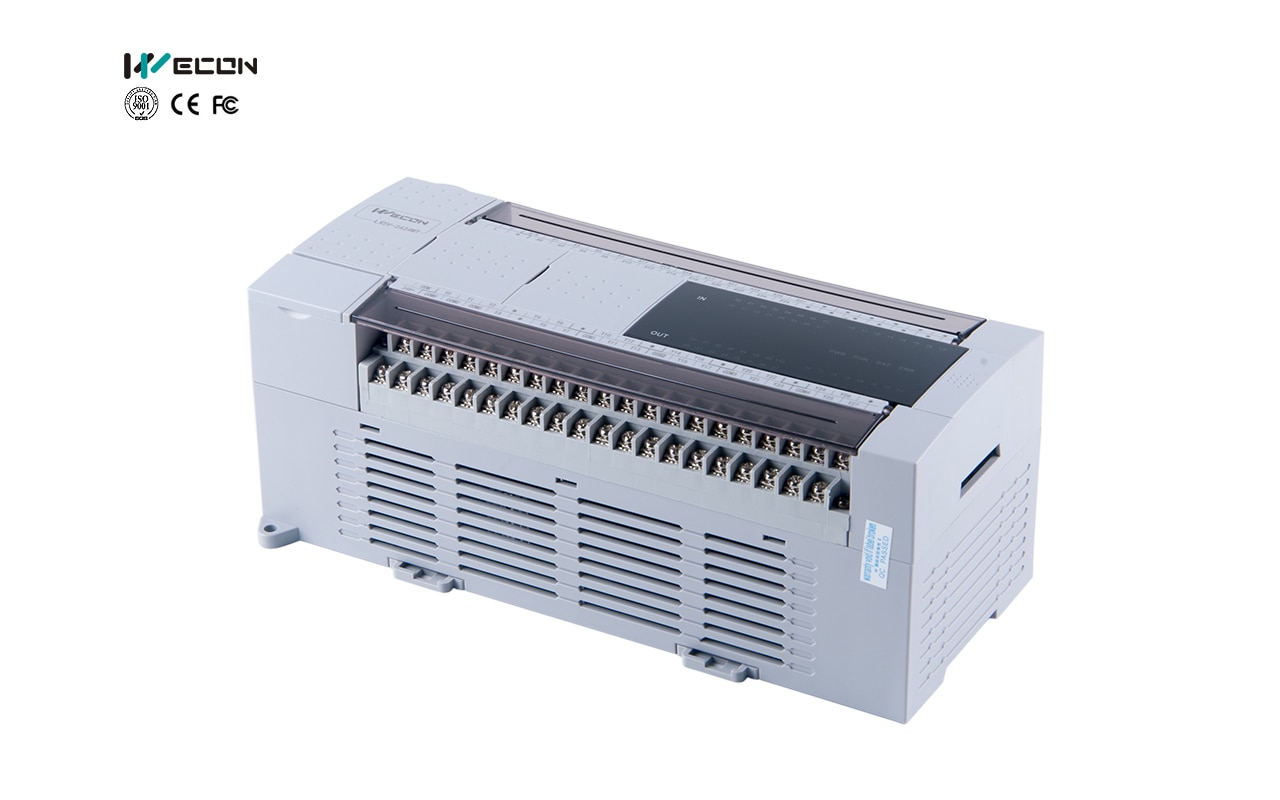

The WECON LX5V-2424MT-AN is a high-performance PLC with 24 inputs and 24 transistor outputs (NPN). It features fast 0.01-0.03µs execution speeds, 512KB storage, 48,000-step program capacity, and supports 8-channel high-speed counting (150kHz/100kHz) and 8-channel pulse output (200kHz) for precise motion control, powered by AC 85-265V.
Key Features and Specifications:
Model: LX5V-2424MT-AN (Transistor Output).
Input/Output: 24 Digital Inputs (24V DC), 24 Transistor Outputs (NPN, 5-30V DC).
Performance: 0.01µs–0.03µs execution speed, 48,000 steps, 512KB system storage.
High-Speed I/O: 8-channel input (150KHz single/100KHz AB), 8-channel 200KHz output.
Communication: Supports 2 RS485 ports and 2 BD modules.
Capabilities: Supports E-CAM, electronic gear, PID/CCPID auto-tuning, and 100 high-speed counter interrupts.
Power Supply: AC 85~265V.
Expansion: Supports LX3V series analog/IO modules.
Environmental: 0~55°C operating temperature, Din-rail mounting.
This controller is suitable for complex automation, including motion control and fast, high-accuracy applications.
