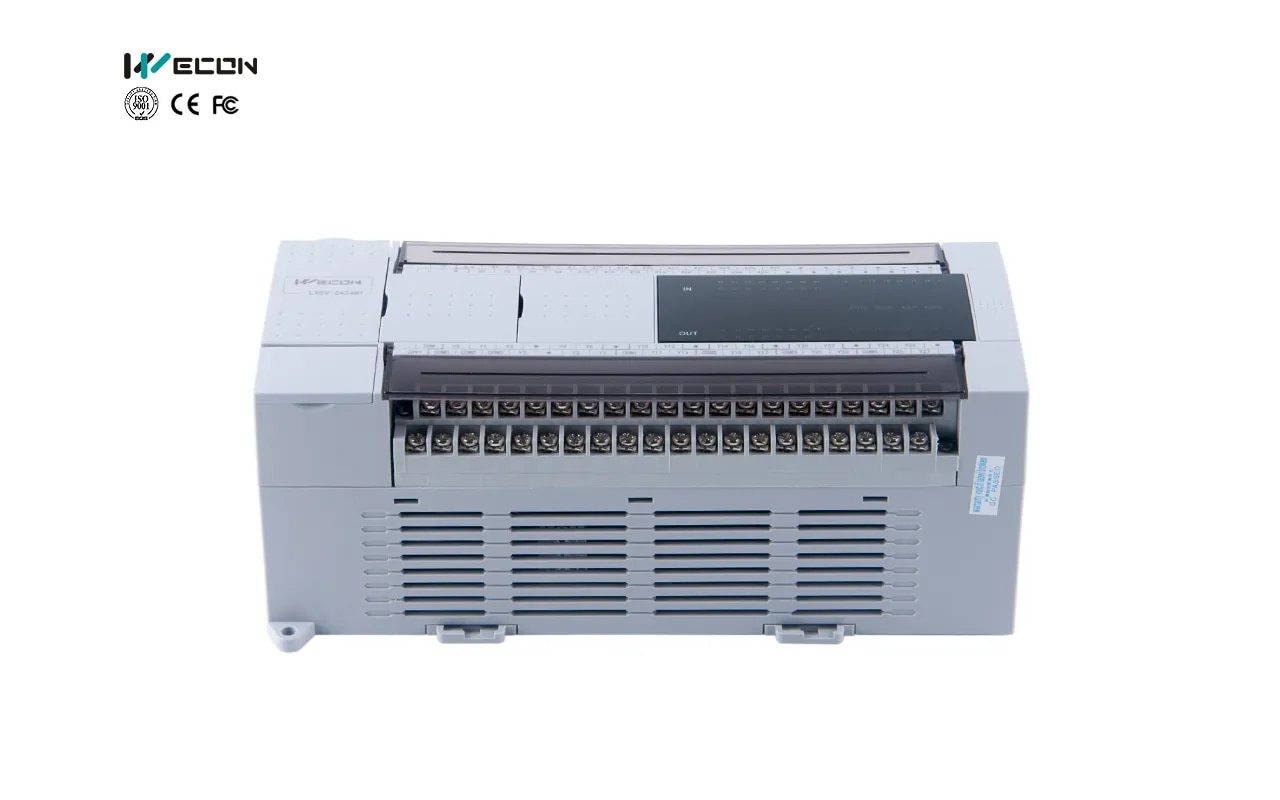

LX5V-3624MT-A

The WECON LX5V-3624MT-A is a high-performance PLC with 36 inputs and 24 transistor outputs, designed for industrial automation with fast processing speeds (0.01-0.03(mu )s) and 512KB program capacity. It features 8-channel high-speed counting, supports 100(mu )s timer interrupts, electronic gear/CAM, and RS485 communication. Key Features and Specifications: I/O Capacity: 36 inputs (DI) and 24 transistor outputs (DO).Performance: High-speed processing (0.01-0.03(mu )s).High-Speed I/O: 8-channel 150K Hz single-phase inputs, 8-channel 100K Hz AB phase inputs, 8-channel 200K Hz outputs.Communication: 2 RS485 serial ports.Expansion: Supports up to 16 extension modules and LX3V series BD modules.Features: Supports E-CAM, electronic gear, PID/CCPID auto-tuning, and 100 high-speed counting interrupts.Power: AC power supply. This unit is part of the Wecon LX5V series, often used for applications requiring rapid response times and complex motion control in industrial environments.
