Name: LX5V-3624MT-AN
Brand: WECON
Price: 25725 INR
Availability: InStock

Phone Number

Email Address info@adhiraautomation.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 42, Maruthamalai Gounder Layout, Ramakrishnapuram, Ganapathy, Coimbatore - 641006. Tamilnadu, South India

Coimbatore, India, 641006

Description

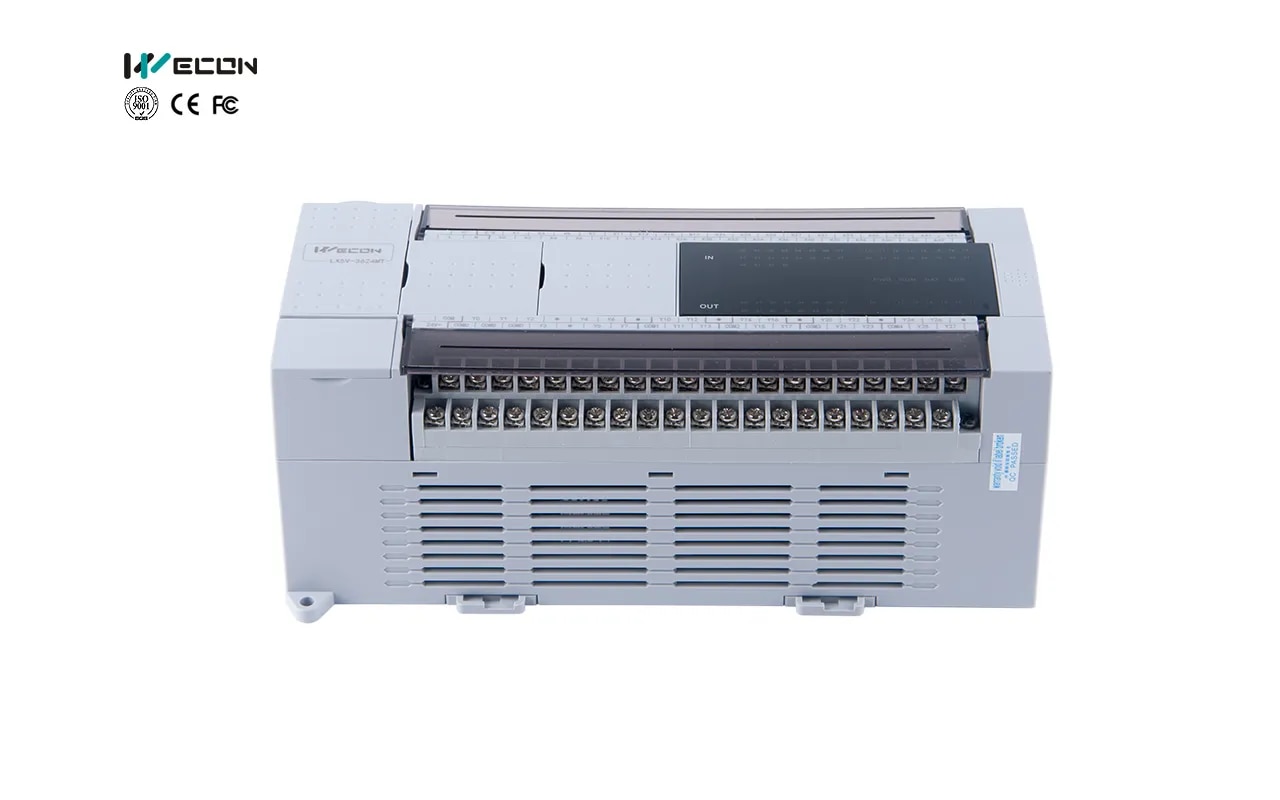

The WECON LX5V-3624MT-AN is a high-performance programmable logic controller (PLC) from the WECON LX5V series, featuring 36 inputs and 24 transistor outputs. It supports rapid execution speeds ((0.01mu ssim 0.03mu s)), 8-channel high-speed counting (150KHz), and 8-channel pulse output (200KHz), making it ideal for motion control and complex automation tasks. Key Features and Specifications: Model: LX5V-3624MT-AN (36 Input / 24 Output).Input Type: Digital (supports NPN/PNP input modes).Output Type: Transistor (MT), suitable for high-speed pulse applications.Performance: High-speed processing with 512KB system storage.Motion Control: Supports E-CAM, electronic gear, and high-speed pulse output up to 200kHz.Communication: Equipped with 2 RS485 ports, mini-USB, and support for up to 16 extension modules.Functions: Supports 8-channel external interrupt, 100(mu s) high-speed timer interrupt, and PID/CCPID auto-tuning.Power: Usually AC powered (implied by -A suffix, often requiring (220V) AC or similar). The LX5V series is designed for enhanced performance compared to the LX3V series, offering faster logic execution and increased capacity.
