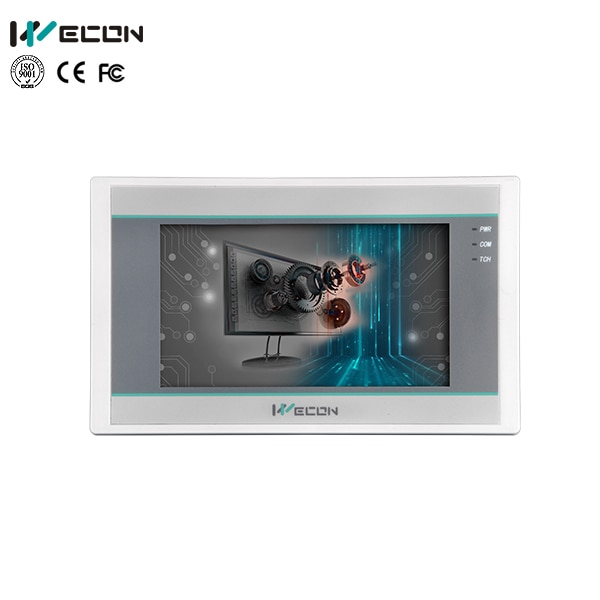

PI3043IE HMI

The WECON PI3043IE is a 4.3-inch compact Human Machine Interface (HMI) screen from the PI3000ie series, designed for industrial automation, process monitoring, and machine control. It is known for its high-performance processor, compact footprint, and durable, user-friendly interface.

Key Details and Technical Specifications

Display: 4.3-inch TFT LCD, with a resolution of 480×272 pixels and 16,000K (16-bit) colors.

Performance: Features a Cortex A35 1.2GHz processor, with 128MB Flash and 64MB DDRII RAM memory.

Interface/Communication: Supports COM1 (RS232/RS422/RS485) and often includes a 7-pin terminal for space-saving wiring.

Power: Operates on 24V DC (range 12–28V DC), with a power consumption of less than 5W.

Physical Features: IP65-rated front panel (dust and water-splash resistant) and a robust ABS plastic housing.

Programming: Configured using Wecon’s PIStudio software.

Core Features and Advantages

Compact Design: Ideal for small machine control panels or environments with limited space.

High-Speed Processing: The Cortex A35 processor ensures fast screen switching and efficient operation.

Wide Compatibility: Supports major PLC brands (Siemens, Mitsubishi, Omron, Delta, Fatek) and communication protocols like Modbus.

Long-Lasting Backlight: The LED backlight has a lifespan of 50,000 hours, reducing maintenance needs.

Environmental Durability: Operates within a temperature range of -10°C to 60°C.

Differences in PI3000ie Series (Optional Features)

PI3043ie-N: Standard model.

PI3043ieS/PI3043ieS-N: Often includes Ethernet for better networking capabilities (check specific model numbers, as some versions include Ethernet while others do not).

The WECON PI3043IE is designed to be a reliable and cost-effective solution for factory automation, offering a 12-month warranty.
