PI3070I-A

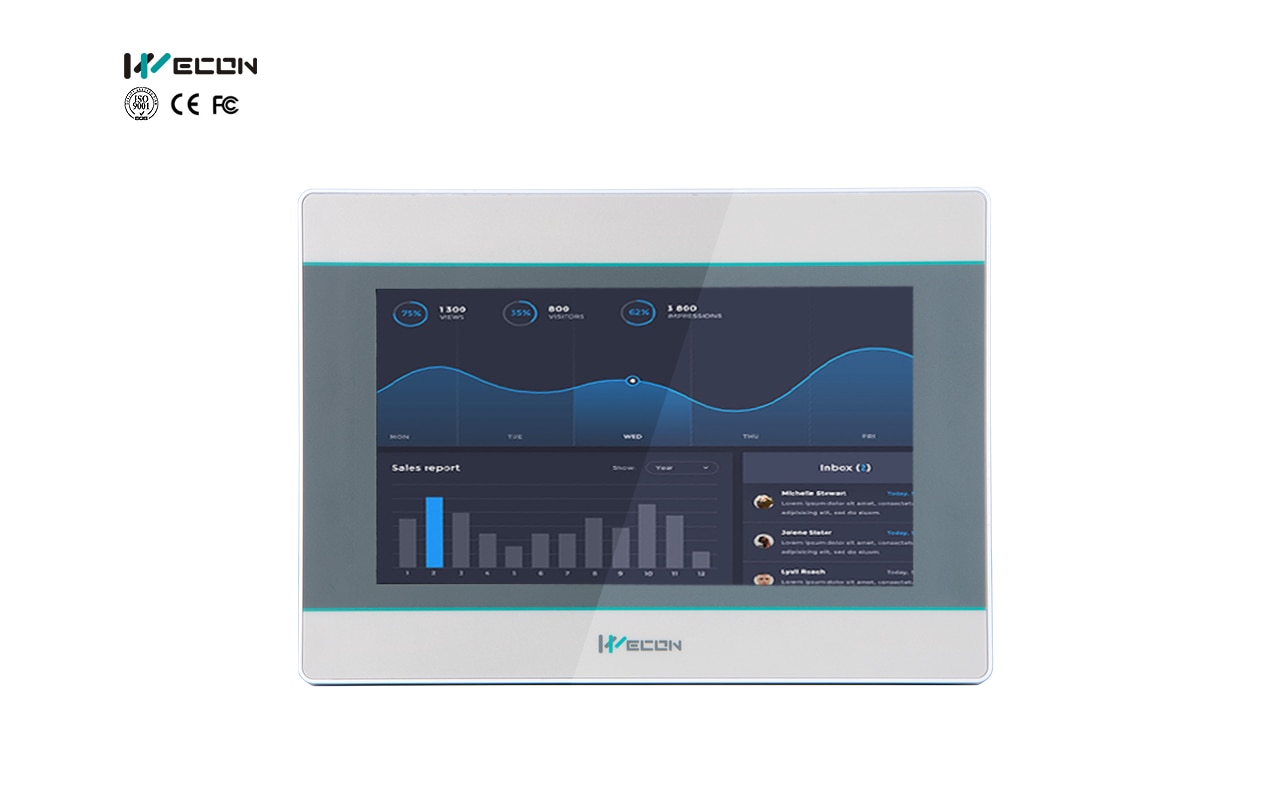

The WECON PI3070I-A is a 7-inch Human-Machine Interface (HMI) designed for industrial automation applications. It is a high-performance, cost-effective panel-mount touchscreen system that integrates with PLCs to provide real-time data monitoring and control. It is generally recognized as part of the PI3000i series, which often features a Linux-based operating system.

Key Details & Technical Specifications

Display: 7-inch TFT LCD with 800x480 pixel resolution. It features 16,000k colors, high-precision four-wire resistive touch, and a LED backlight with a lifetime of 50,000 hours.

Processor & Memory: Equipped with a Cortex A7 528MHz processor, 128 MB Flash, and 128 MB RAM.

Communication Ports: Includes RS232, RS422/RS485 ports for PLC communication. It also supports USB download (USB Host + USB Client).

Operating System: Based on Linux 4.9.11 QT.

Durability: The front panel has an IP65 rating, ensuring resistance to dust and water in industrial environments. It is designed for operation between -10 and 55°C.

Programming Software: Programmed using the free PIStudio software, which enables user-friendly interface design, data logging, and alarm management.

Core Features and Benefits

High-Resolution Display: Provides clear, 16-bit color visualization for complex industrial processes.

Durable Design: The robust, IP65-rated front panel ensures reliability in harsh, demanding industrial environments.

Versatile Connectivity: Supports a wide range of communication protocols to connect with various PLC brands, allowing for flexible integration.

Efficient Operation: Features fast screen switching and high-speed data sampling, which reduces response time in automated systems.

Common Applications

Factory Automation: Used to control production lines and machinery.

Process Monitoring: Real-time monitoring of industrial data and parameters.

Data Logging & Alarms: Used for tracking operational history and managing alarms.

The WECON PI3070I-A is a reliable, budget-friendly choice for machine control and automation tasks needing 7-inch HMI displays.
