Description

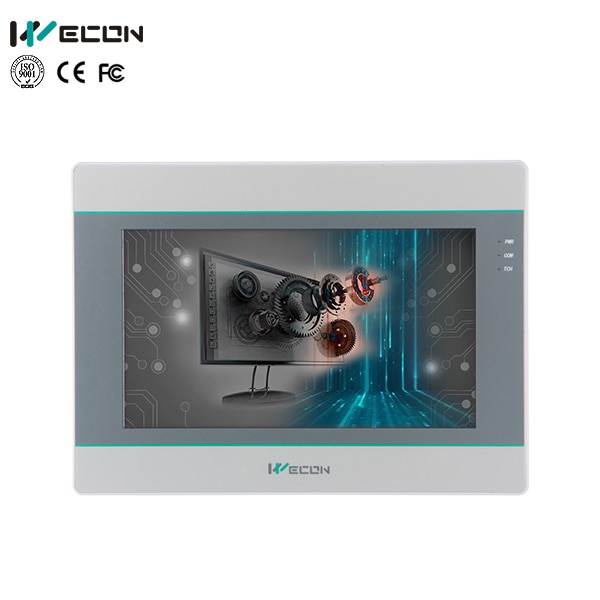

The WECON PI3070Ig-C(W) is a 7-inch, high-performance Human Machine Interface (HMI) designed for industrial automation and Internet of Things (IoT) applications. It features a robust, Linux-based operating system, a Cortex A35 1.2GHz processor, and Wi-Fi capabilities (indicated by the 'W' in the model name). Key Technical Specifications Display: 7-inch TFT LCD, 800x480 resolution, 16,000k colors, with a resistive touch panel. Processor & Memory: Quad-core Cortex A35 1.2GHz CPU, 128MB RAM, and 128MB Flash memory. Interfaces: Ethernet port, USB Host/Client (for downloading/data storage), and serial ports (COM1: RS232/RS422/RS485). IoT & Connectivity: Built-in Wi-Fi, 4G LTE support (optional), V-NET, and MQTT protocol support for cloud data synchronization. Operating System: Linux 4.4.0 QT based. Power: 24V DC (12-28V DC), Power consumption < 8W. Protection: IP65-rated front panel. Key Features and Capabilities Remote Monitoring & Access: The device supports WVPN (WECON VPN) for remote debugging, allowing engineers to update and revise HMI and PLC programs over the network. Cloud Services: Supports cloud SCADA, V-NET, and MQTT, making it suitable for modern, internet-connected factory applications. High Performance: The quad-core processor ensures fast screen updates and improved communication stability, even when handling complex, data-intensive tasks. Versatile Functionality: Supports Lua scripting for complex logic, historical data recording, and alarms. Compatibility: Compatible with a wide range of major PLC brands via the PI Studio software. Applications The PI3070Ig-C(W) is ideal for: Factory Automation: Machinery panels and production lines. IoT & Remote Access: Remote monitoring and data logging via the cloud. Industrial Control: Process control systems requiring robust and durable HMI solutions. Installation & Physical Characteristics Mounting: Panel mount. Dimensions: 201.2W x 147.2H x 39.0D mm. Cutout Size: 192.0W x 138.0H mm. Operating Temperature: -10°C to 55°C. Software Programming Software: PI Studio. This HMI is designed for applications needing a balance of high-performance hardware, reliable data communication, and modern, secure, remote access capabilities.
