PI3070Ig-O-H
Description

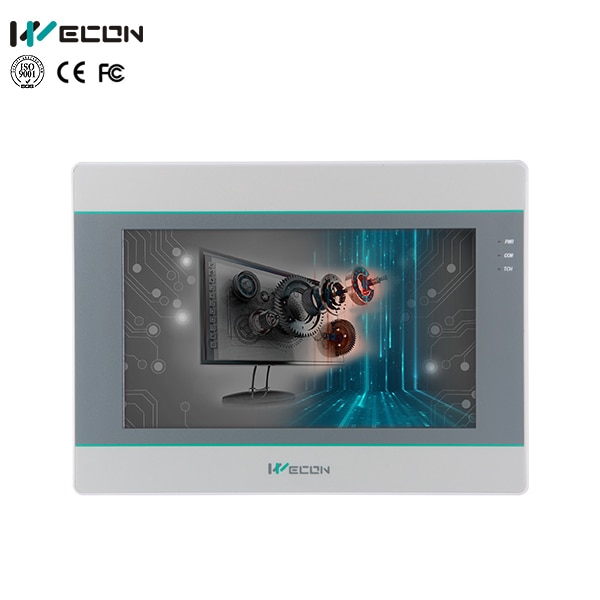

The WECON PI3070ig-O-H is a 7-inch, high-performance Human Machine Interface (HMI) designed for industrial automation, offering a durable resistive touchscreen, robust connectivity (Ethernet, USB, RS232/RS485), and a 1.2GHz Cortex A35 processor running on a Linux-based OS. It is specifically built for panel-mount applications in harsh environments, featuring an IP65-rated front panel and 16,000k color depth.
Key Details and Specifications
Processor & Performance: It features a Cortex A35 1.2GHz CPU with 128MB Flash and 128MB RAM, providing faster screen updates and better communication stability compared to previous models.
Display: 7-inch TFT LCD screen with 800x480 resolution, 16,000k colors, and a 50,000-hour LED backlight lifespan.
Interface & Communication: Includes one Ethernet port (10/100Mbps), one USB Host, one USB Client, and multiple COM ports (RS232/RS422/RS485).
Power Supply: DC 24V (operating range 12V~28V).
Environment: Operating temperature range of -10°C to +55°C (some variations list -10 to +60°C) and IP65-rated front panel for water/dust resistance.
Software: Programmed using PIStudio, which supports Lua scripting, data logging, and remote monitoring.
Functionality: Supports real-time trend graphs, bar graphs, alarm records, and history data, allowing data to be exported to external USB storage.
Key Features and Applications
Versatile Connectivity: Compatible with a wide range of major PLC brands, enabling easy integration with existing automation systems.
Durability: The high-precision four-wire resistive touchscreen is designed for industrial environments, allowing operation with gloves.
Applications: Commonly used in machinery panels, production lines, process control systems, and SCADA applications.
Remote Access: Supports V-NET, remote monitoring, and VNC functionalities for managing systems from remote locations.
Differences from similar models:
PI3070ie: Generally has 64MB RAM/128MB Flash.
PI3070ig-C: Supports more advanced IIoT functions such as MQTT and Cloud monitoring
