PI3070Ig-(W)

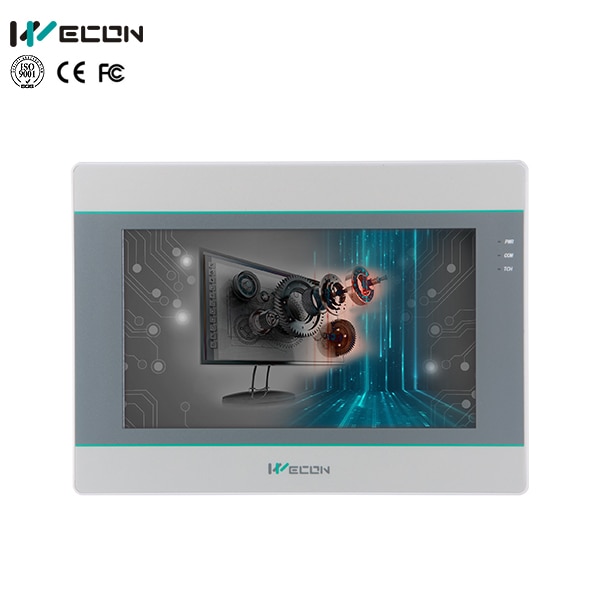

The WECON PI3070Ig-(W) is a 7-inch Human Machine Interface (HMI) panel from WECON's “ig” series, designed for industrial automation, process control, and IoT applications. It features a high-performance CPU, Linux-based operating system, and versatile connectivity. The “(W)” generally indicates a model variant (often indicating White bezel or specific connectivity features like Wi-Fi).

Key Technical Details & Specifications

Display: 7-inch TFT LCD, 800x480 resolution, 16,000k colors with 250 cd/m² brightness.

Processor & Memory: Quad-core Cortex A35 1.2GHz CPU, 128MB Flash + 128MB DDR RAM, providing fast screen updates and improved communication.

Touch Panel: High-precision 4-wire resistive touch panel, operable with gloves.

Operating System: Linux 4.4.0 QT based.

Communication Interfaces:

Ethernet: 1x 10/100Mbps RJ45 port.

Serial Ports: COM1 supports RS232/RS422/RS485.

USB: USB Host (for U Disk/data storage) and USB Client (for programming).

Wi-Fi/4G: Supported in specific models (such as the C-WF variant).

Environmental Protection: IP65 rating on the front panel (dust-proof and water-resistant).

Programming Software: PIStudio.

AI and Smart Features

Remote Monitoring: Supports WVPN (Wecon Virtual Private Network) for secure, remote access to the HMI via internet.

Cloud Connectivity (3070ig-C): The -C variant supports V-NET, allowing synchronization of HMI data to the cloud for SCADA (Supervisory Control and Data Acquisition).

Data Logging & Alarms: The HMI supports real-time trending, history records, and alarm logging.

Scripting: Supports Lua scripting for advanced, customized functionality.

Physical Specifications

Mounting Type: Panel Mount.

Cutout Size: 192.0W x 138.0H mm.

Overall Size: 201.2W x 147.2H x 39.0D mm.

Power Supply: 24V DC (Input range 12~28 VDC).

Weight: 0.52 kg.

Applications

The PI3070Ig is suitable for factory automation, machinery monitoring, HVAC system management, and building automation, particularly where remote access and high-speed, reliable interaction with PLCs (including Siemens, Schneider, and WECON own brands) are required.
