Description

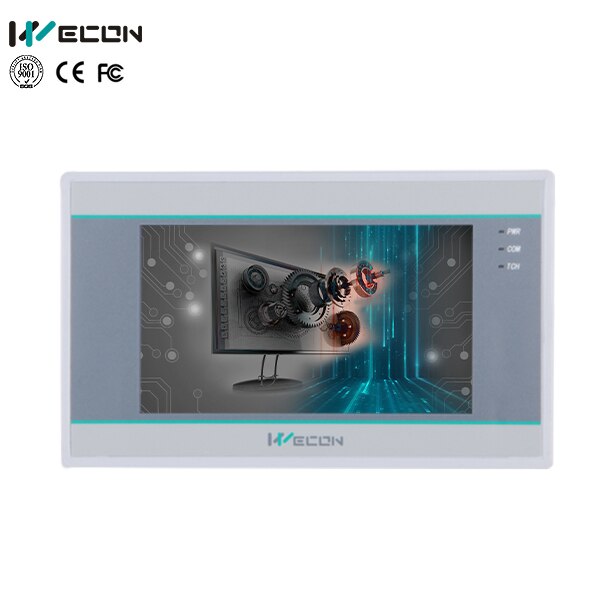

The WECON PI8043IG(G) is a 4.3-inch, 2nd Generation IoT Human Machine Interface (HMI) designed for industrial automation, offering high-performance, compact visualization and remote monitoring capabilities. It is part of the PI8000ig series, which is known for its fast data response speeds and compatibility with cloud-based IoT services. Key Technical Specifications Display: 4.3-inch TFT LCD, 480x272 resolution, 16,000K colors. Processor & Memory: Quad-core ARM Cortex-A35 1.2GHz CPU, 4GB Flash, 512MB DDR RAM (some models listed as 128MB RAM/Flash, but 4G/512M is standard in newer documentation). Touch Panel: High-precision four-wire resistive. Protection: IP65-rated front panel (dust and water-resistant). Power: DC 24V (Range: 12~28V DC), Power consumption <8W. Operating Temp: -10 ~ 55°C. Communication and IoT Capabilities The IG series is heavily focused on connectivity and IoT (Industrial Internet of Things): Interfaces: COM1 (RS232/RS422/RS485), Ethernet (RJ45), USB Host/Client (Type-C). IoT & Cloud: Supports V-NET, remote monitoring, WVPN pass-through, and data synchronization to the cloud. Remote Access: Features include remote programming, remote HMI screen monitoring, and email alarms. Protocols: Compatible with over 300 communication protocols (including Modbus, Siemens, Allen Bradley, Mitsubishi). Software and Performance Programming Software: PI Studio. Performance: Compared to the 1st generation (PI8000 series), the IG series offers faster data response, allowing for quicker screen updates and better remote operation. Operating System: Linux 4.4.0 QT based. Physical Dimensions Overall Size: 142.0W x 86.0H x 30.5D (mm). Mounting Size: 131.0W x 78.0H (mm). Weight: ~0.39 kg. Summary of Differences (PI8043ig vs PI8043ig(W)) PI8043ig: Generally includes Ethernet and basic remote features. PI8043ig(W) / PI8043ig-WIFI: Often indicates the inclusion of Wi-Fi capabilities. PI8043ig(G): Refers to the “Grey” model with 4G/512M memory. This HMI is ideal for small machinery, industrial equipment, and applications requiring remote monitoring and cloud connectivity.
