PI8043ig

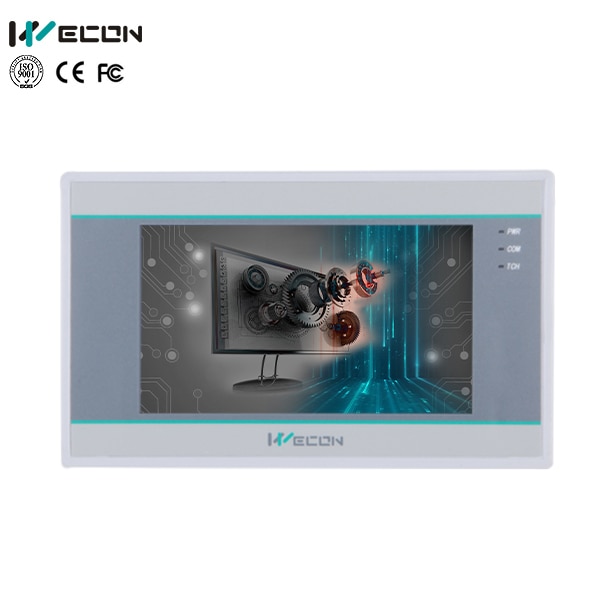

The WECON PI8043ig is a 4.3-inch, 2nd Generation Internet of Things (IIoT) Human Machine Interface (HMI) designed for industrial automation and control applications. It features a high-performance Quad-Core Cortex A35 processor, a 480x272 resolution TFT color display, and robust, compact construction.

Key Technical Details:

Processor & Performance: It runs on a Cortex A35 processor with a high-speed engine, supporting fast boot times (approx. 6 seconds) and quick screen switching (100ms).

Memory: Equipped with 4GB Flash and 512MB DDR RAM.

Display: 4.3-inch TFT LCD (480x272 pixels), 16,000k colors, with a 300 cd/m² brightness and a 50,000-hour LED backlight.

Communication: Features Ethernet (RJ45), RS232, RS422, and RS485 interfaces. It supports over 300+ communication protocols.

IIoT/Remote Features: Supports WVPN, V-NET for cloud synchronization, remote monitoring, and serial pass-through.

Environment & Build: The front panel is IP65 rated for dust and water resistance, suitable for harsh environments with an operating temperature of -10°C to 55°C.

Programming Software: Uses PI Studio for development.

Dimensions: Overall size is 142.0W x 86.0H x 30.5D mm, with a mounting size of 131.0W x 78.0H mm.

The PI8043ig is designed for applications needing compact, efficient, and remote-accessible visualization, such as on assembly lines, CNC machines, or other smart manufacturing systems.
