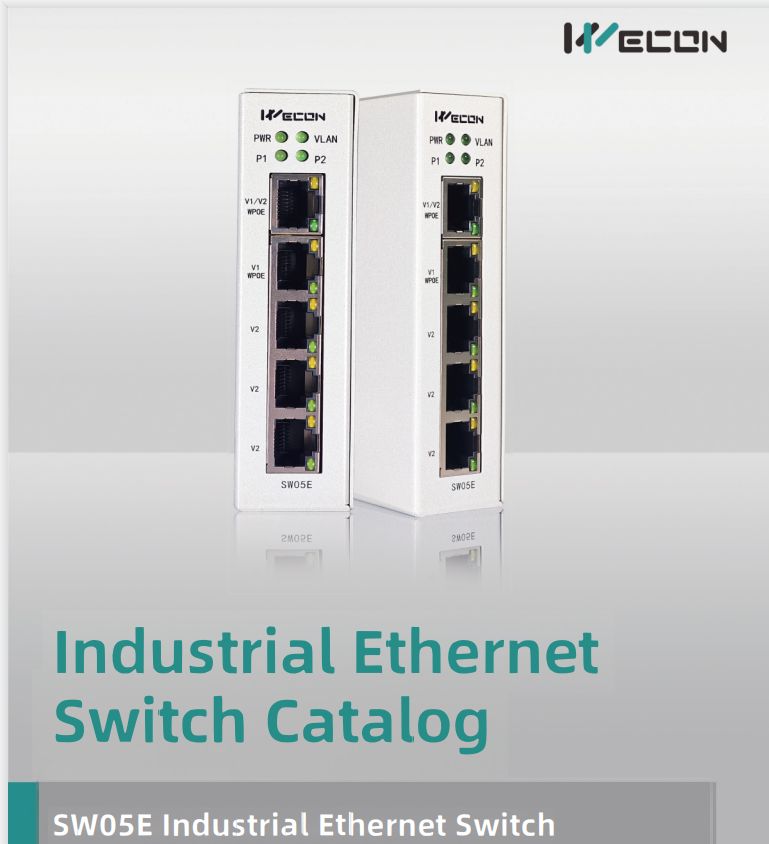

SW05E - 5PORT HUB

The WECON SW05E is an industrial-grade, unmanaged Ethernet switch designed for reliable, high-speed communication in demanding industrial environments. It features 5 RJ45 ports and is specifically engineered to handle harsh conditions in factories, power stations, and automation panels.

Here is a detailed breakdown of the WECON SW05E features and specifications:

Key Features and Capabilities

Port Configuration: Equipped with 5x 10/100Mbps Ethernet ports.

WPoE Function (Wecon Power over Ethernet): Network ports 1 and 2 support WPoE, allowing the switch to power compatible Wecon devices directly through the network cable.

VLAN Isolation: Features a built-in DIP switch for VLAN functionality. When enabled, it splits the switch into two isolated networks, improving security and reducing broadcast traffic.

Industrial Robustness:

Rugged Design: Iron metal casing built for high vibration, collisions, and, in some models, extreme temperatures ranging from -40°C to 75°C.

Electromagnetic Compatibility: Designed to resist electromagnetic interference (EMI) common in factory settings.

Installation: Supports both DIN-rail mounting and wall mounting.

Technical Specifications

Power Input: 24V DC (range 18 to 28V DC).

Power Consumption: Less than 1W.

Operating Temperature: -10°C to 55°C (standard model), with some versions supporting -40°C to 75°C.

Storage Temperature: -20°C to 70°C.

Dimensions: 113.1mm x 71.0mm x 29.0mm (LxWxH).

Cooling Method: Natural convection (fanless).

Application Scenarios

The SW05E is utilized to provide stable,, and fast networking for various automation devices, including:

PLCs and HMIs: Connecting programmable logic controllers and human-machine interfaces.

VFDs and Sensors: Linking variable frequency drives and sensors.

IIoT Gateways: Essential component in IoT-based industrial networks.

Industrial Automation Systems: Used in machinery, manufacturing lines, and robotic applications.

The WECON SW05E is designed to act as a cost-effective alternative to consumer-grade switches, providing “industrial-level stability at consumer-level prices”
