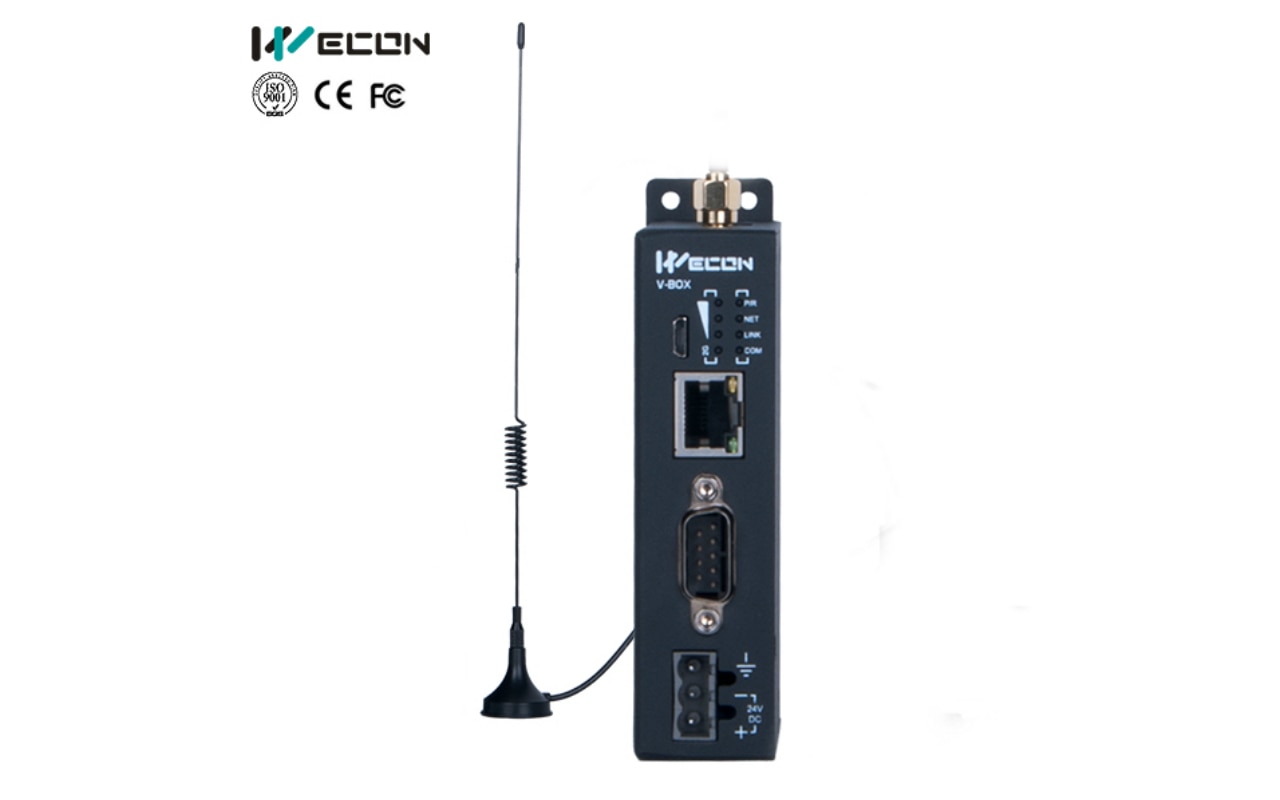

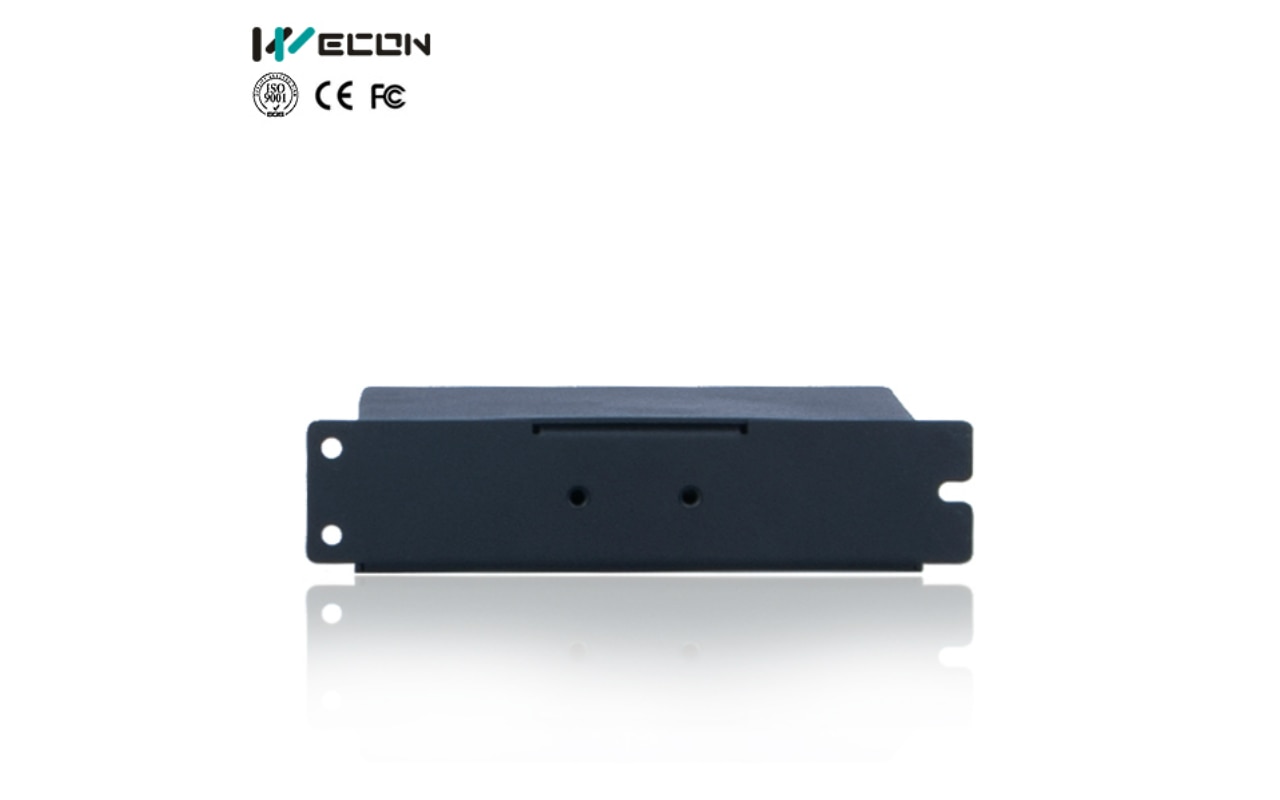

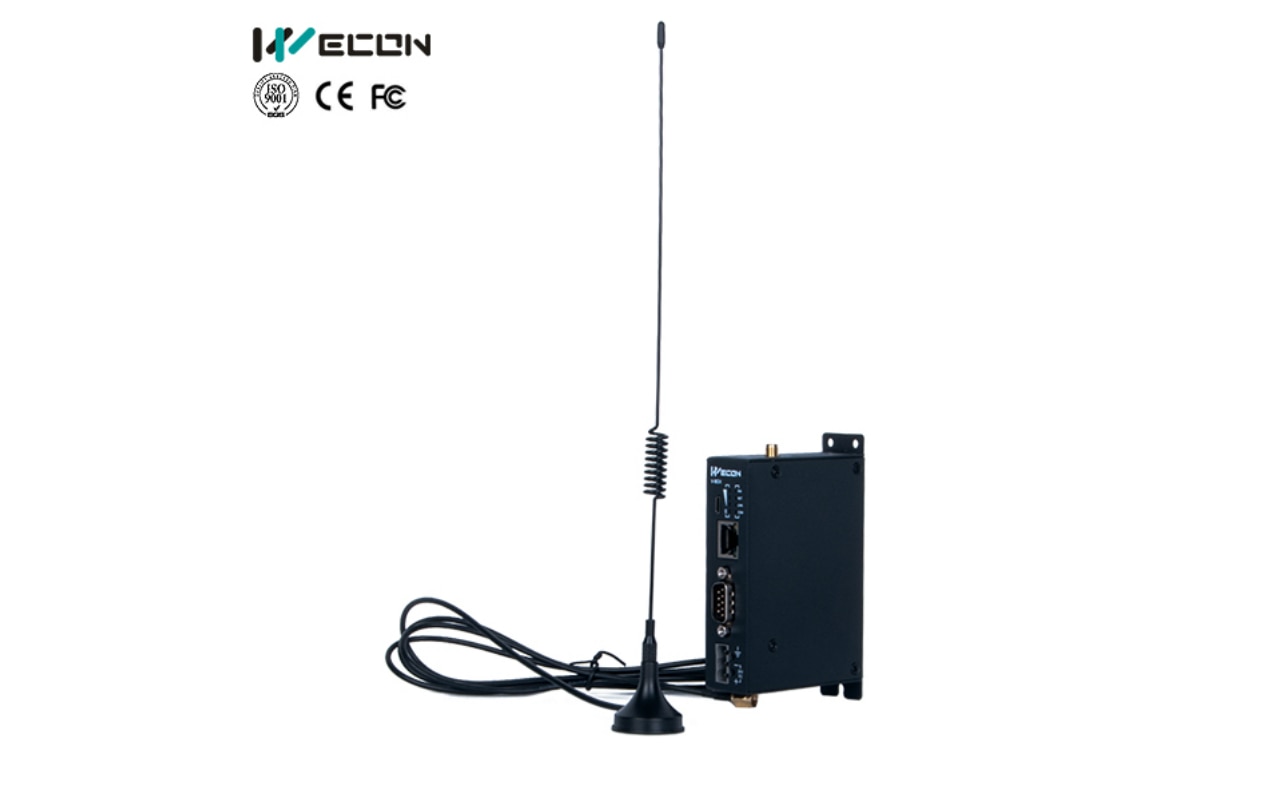

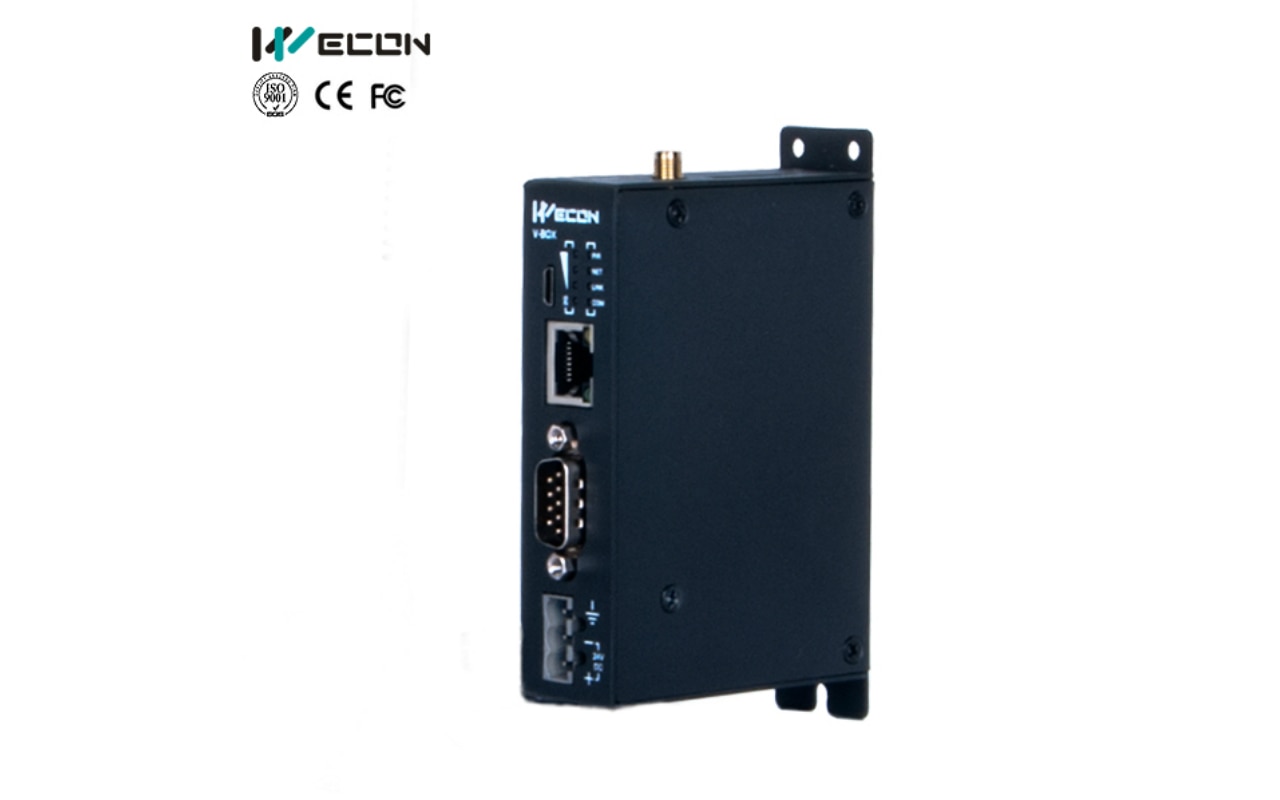

VBOX RE-4G

The WECON V-BOX RE-4G is an industrial IoT gateway featuring built-in 4G connectivity, 128MB Flash/64MB RAM, and Linux-based, high-performance computing for remote PLC monitoring. It supports 100 data, 20 alarm, and 50 historical points, featuring Ethernet and RS232/422/485 ports. Ideal for IoT, it allows WVPN, remote maintenance, and PLC pass-through.

Key Technical Specifications for V-BOX RE-4G:

Networking: Built-in 4G (LTE-FDD/LTE-TDD) and 1x Ethernet port.

Processor/Memory: Quad-core high-performance CPU, 128MB Flash, 64MB DDRIII RAM.

Serial Ports: COM1: RS232, RS422/RS485.

Data Capacity: 100 real-time, 20 alarm, and 50 historical points.

Power & Design: 24VDC ((12sim 28text{VDC})) input, <10W power, metal shell, -10°C~60°C working temperature.

Software & Functionality: Supports PIStudio, LUA script, WVPN, and PLC remote passthrough
