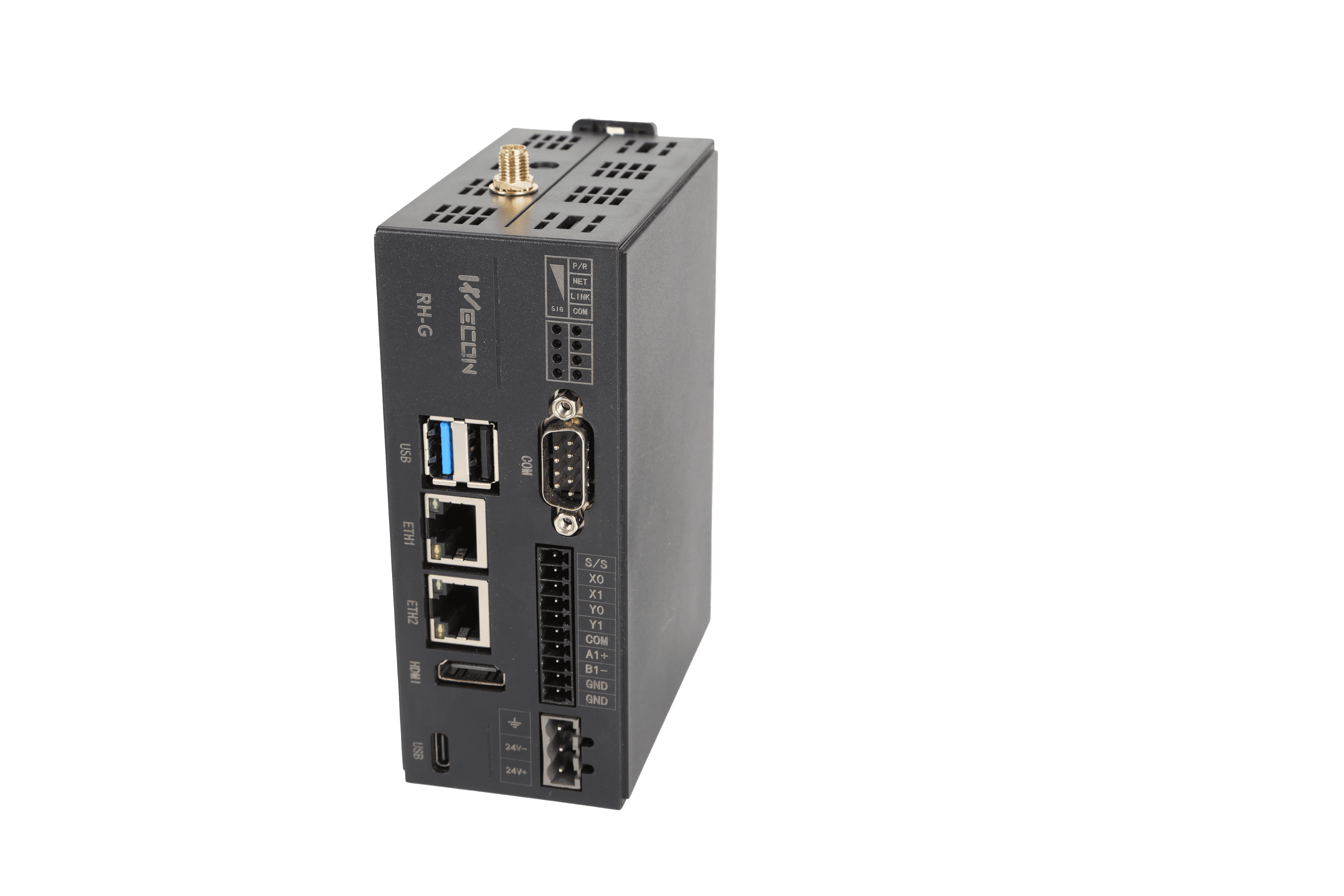

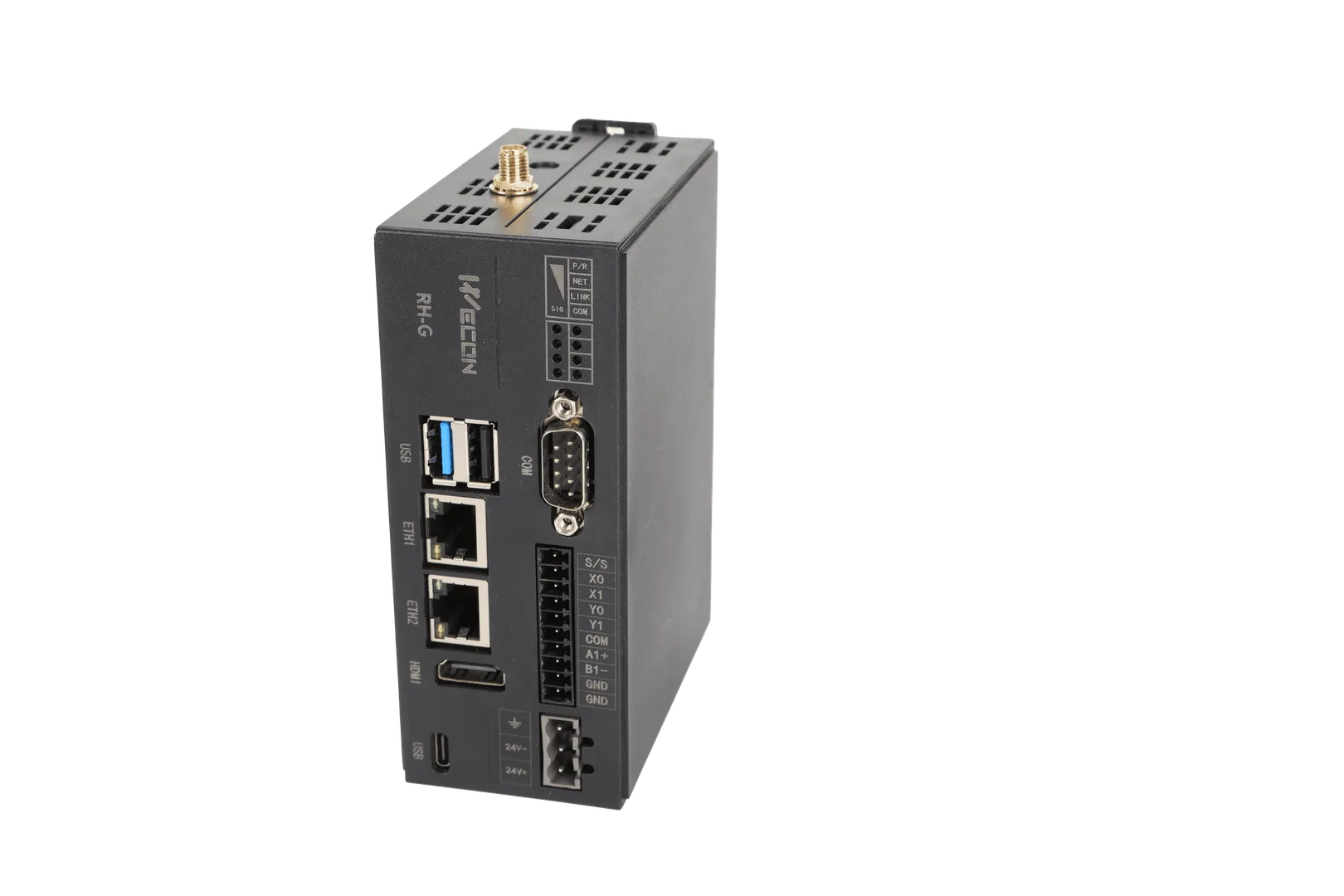

VBOX RH-G

The WECON V-BOX RH-G is an industrial IoT gateway featuring a 4-core Cortex-A55 processor, 1GB RAM, 4GB eMMC storage, and built-in 4G/Wi-Fi, designed for cloud-based remote monitoring, PLC data acquisition (Modbus, various protocols), and data logging via V-NET. It supports 2 Ethernet ports, 2 serial ports (RS232/485), and 2 digital I/O.

Key Specifications of V-BOX RH Series

Processor & Storage: Cortex-A55 4-core CPU, 1GB RAM, 4GB Flash memory.

Connectivity: 2x Ethernet (LAN/WAN), 4G module, and Wi-Fi (on RH-WG models).

Serial Ports: COM1: RS232/RS485/RS422; COM2: RS485.

Data Capacity: Handles 300 real-time, 200 alarm, and 100 historical data points.

I/O: 2 relay outputs, 2 optocoupler isolated inputs.

Software & Features: Supports LUA scripts, V-NET IoT platform, remote PLC programming via WVPN, and PIStudio for configuration.

Power & Mounting: 24V DC power, supports DIN rail or screw mounting.

Model Variants: RH-AG (Ethernet/4G), RH-WG (Ethernet/4G/Wi-Fi).

Functionality

Cloud Access: Connects machines to the Wecon cloud platform for real-time monitoring via mobile (iOS/Android) or PC.

Data Logger: Collects and saves historical data and alarms directly to Excel.

Remote Maintenance: Enables remote debugging and firmware updates.
