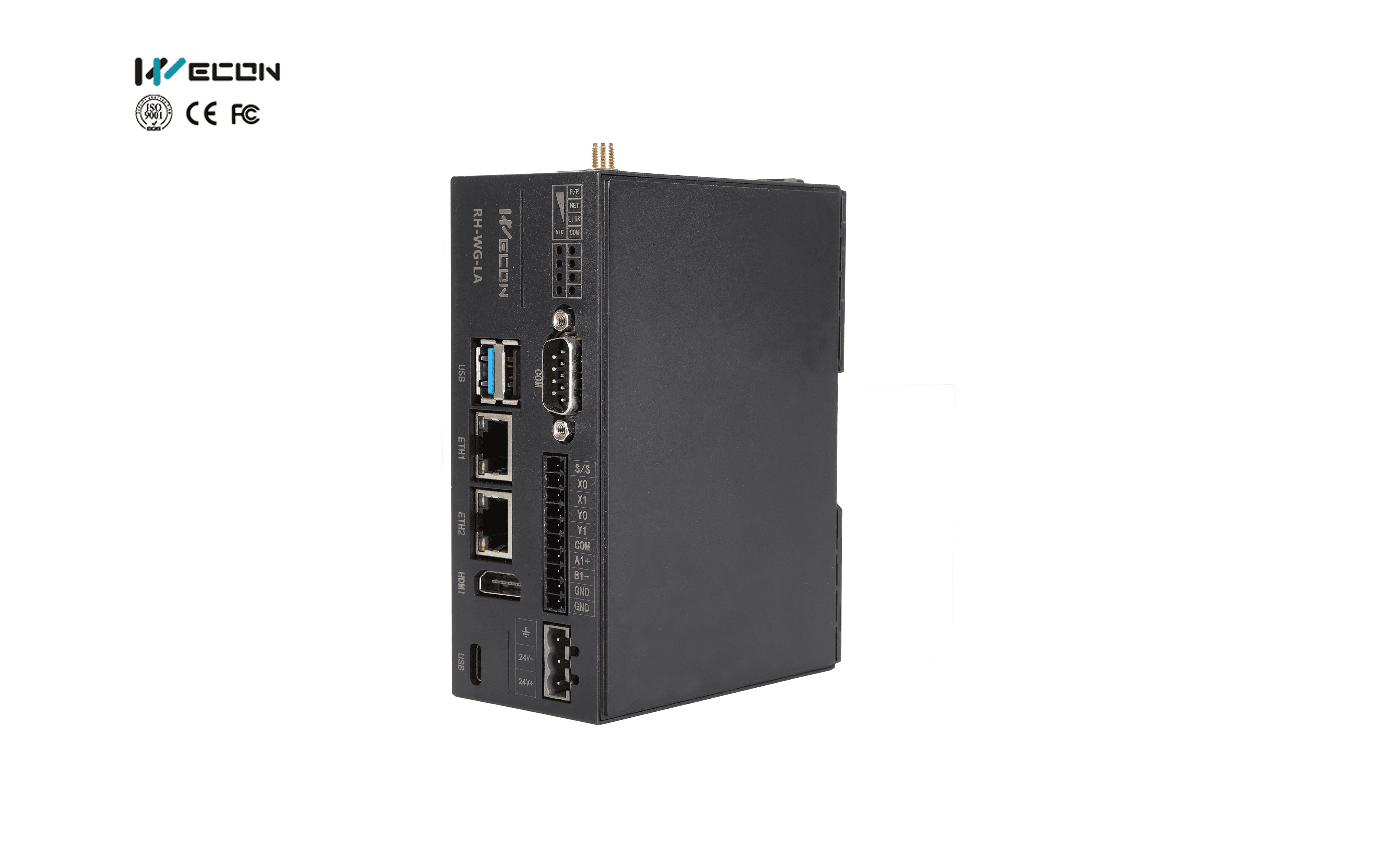

VBOX RH-WG-LA

The WECON V-BOX RH-WG-LA is a high-performance industrial IoT (IIoT) gateway from the V-BOX RH series designed for advanced data collection, remote monitoring, and cloud connectivity. It bridges on-site industrial machinery (like PLCs, sensors, and inverters) with cloud platforms, supporting 4G, Wi-Fi, and Ethernet connectivity.

Key Specifications & Features

Processor & Memory: Equipped with a Cortex-A55 4-core processor, 1GB RAM, and 4GB eMMC storage for fast data processing and local storage.

Connectivity: Features dual Ethernet ports, built-in Wi-Fi, and a 4G module.

Interfaces: Includes a Type-C USB for programming, two USB 2.0 hosts, and a HDMI interface for local, large-screen display (up to 3840x2160 resolution).

Serial Communication: Supports RS232, RS422, and RS485 (COM1 & COM2) to connect to various PLCs.

Digital I/O: Features 2 relay outputs and 2 optocoupler isolated inputs.

Power: Operates on 24VDC (12~28VDC).

IoT Capabilities: Supports WVPN (Wecon VPN) for remote debugging, API interfaces (HTTP/MQTT), and Lua scripting for custom logic.

Data Handling: Capable of monitoring up to 300 real-time data points, 200 alarms, and 100 historical data points.

V-BOX RH Series Advantages

High Performance: Designed for complex scenarios requiring fast, stable data collection.

Versatile Protocol Support: Supports major PLC brands and free-tag protocols.

Cloud & Mobile Integration: Allows for monitoring via the V-Net app on iOS or Android.

Environmental Protection: Designed with robust components for industrial environments, operating within -10°C to 60°C.

Applications

The V-BOX RH-WG-LA is ideal for:

Smart manufacturing and Industry 4.0 applications.

Remote maintenance and diagnostics.

HVAC and water treatment systems.

Textile and printing machinery monitoring
