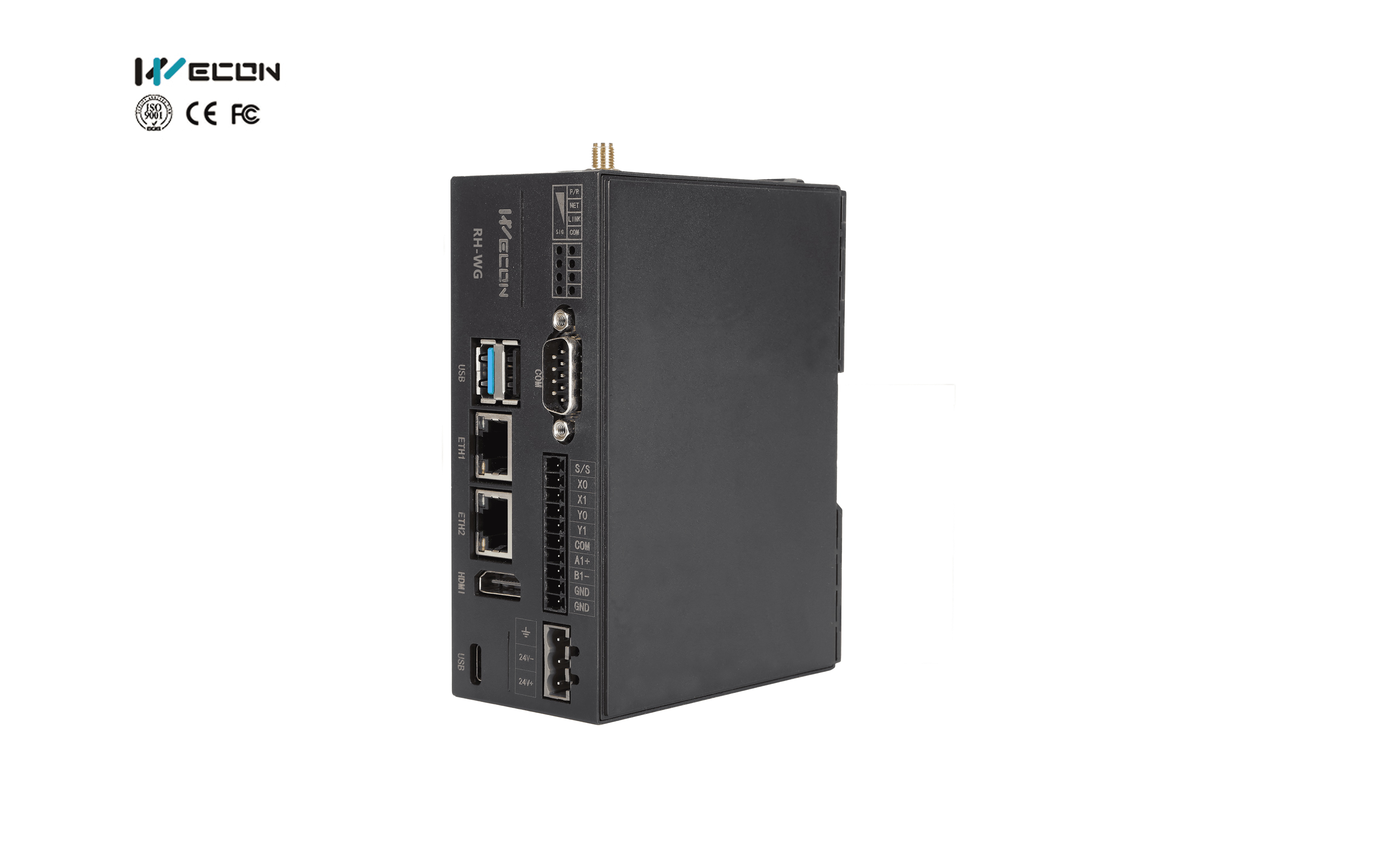

VBOX RH-WG

The WECON V-BOX RH-WG is a high-performance industrial IoT (IIoT) gateway designed for remote monitoring, data logging, and connecting industrial equipment (like PLCs) to cloud platforms. It belongs to the RH series, which features advanced, high-performance hardware compared to older V-BOX models.

Key Specifications (RH-WG Model)

Processor: Cortex-A55 4-core

Memory/Storage: 1GB RAM, 4GB Flash

Connectivity:

WIFI Module: Yes (Built-in)

4G Module: Yes

Ethernet Ports: 2

Serial Ports: COM1: RS232, RS485/RS422 (2 in 1); COM2: RS485

HDMI: Supports HDMI 2.0 (Max resolution 3840×2160) for big-screen display

Digital I/O: 2-channel relay output, 2-channel isolated input

Power Supply: 24VDC (12~28VDC)

USB: USB 2.0 *2 (Non-isolated), USB Type-C *1 (Programming)

Dimensions: 125.0mm93.7mm51.0mm

Key Features & AI/Intelligent Functions

Data Acquisition & Cloud: Collects data via Modbus RTU/TCP and connects to the WECON cloud (V-NET) or third-party platforms via MQTT/HTTP.

Remote Access: Supports WVPN for secure remote configuration, debugging, and downloading of PLC/HMI programs.

Scripting: Supports Lua script for custom logic, complex data processing, and user-defined protocol implementation.

Monitoring Limits: Supports up to 300 real-time data points, 200 alarm points, and 100 historical data points.

Big Screen Display: The HDMI interface allows direct connection to large displays for visualization without a computer.

Offline Operation: Supports data caching and transmission when network connectivity is restored.

Applications

The V-BOX RH-WG is used for remote maintenance and IIoT in:

Machine Tools & Manufacturing

Smart Agriculture & HVAC

Water Treatment & Textile Printing
