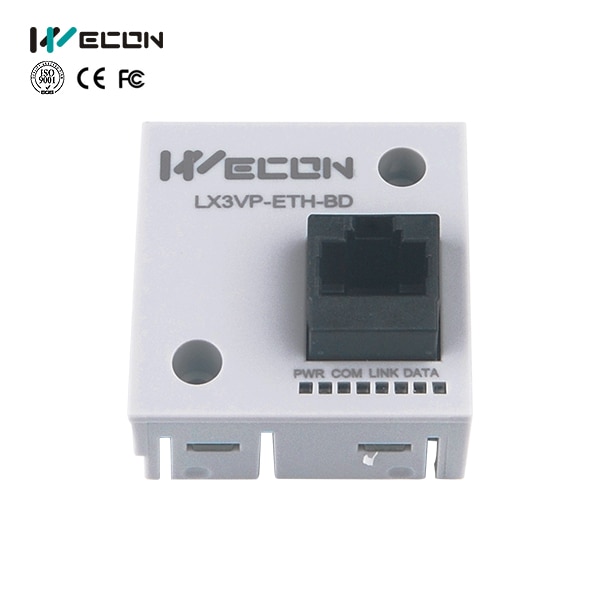

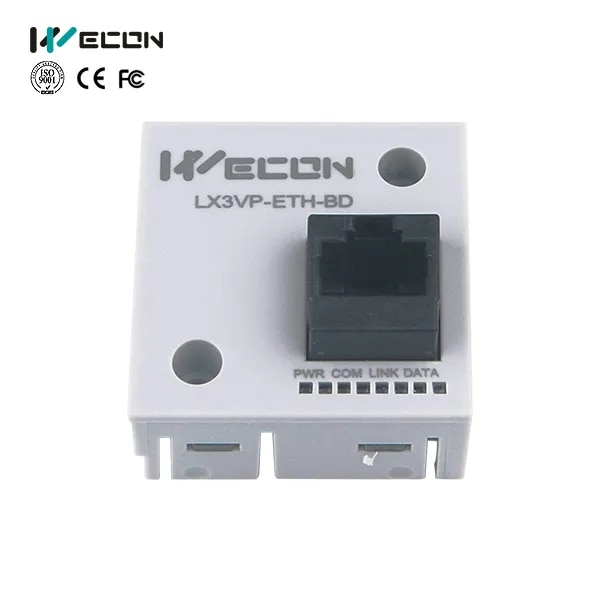

LX3VP-ETH-BD

The WECON LX3VP-ETH-BD is an Ethernet communication board designed for WECON LX3V/LX3VP/LX3VE series PLCs, allowing them to support MODBUS-TCP protocols. It installs directly on top of the PLC, supporting up to 8 connections without requiring extra installation space. This compact, cost-effective module features a standard RJ45 port and is used for network communication in industrial automation.

Key Features and Specifications:

Function: Enables Ethernet communication (MODBUS-TCP) for LX3VP series PLCs.

Installation: Directly mounted on the top of the PLC, saving space.

Connections: Supports a maximum of 8 concurrent connections (master/slave).

Protocol: Supports MODBUS-TCP.

Application: Ideal for industrial automation and process control.

Installation Guidelines:

Power Down: Always turn off the power to the PLC host before installing the BD board.

Mounting: Install the module in the designated position on the PLC and secure it with the provided screws.

Configuration: The module IP address should be configured in the same network segment as the master station.
